18 Foot Square Straight Steel Light Pole, 4 Inch Diameter, 11 Gauge (Above Ground) SNS-18-40-11

POLE SHAFT:

The pole shaft is fabricated from hot rolled commercial quality carbon steel of one piece construction with a minimum yield strngth of 55.000 psi.

BASE PLATE:

The base plate is fabricated from a structural quality hot rolles carbon steel plate that meets or exceeds ASTM A-36 with a minimum yield strength of 36,000 psi. The base plate telescopes the pole shaft and is circumferential welded top and bottom

BASE COVER:

The two-piece standard full base cover is fabricated from ABS plastic. Optional two-piece steel base cover also available.

ANCHOR BOLTS:

Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and flat washers. Bolts have an "L" bend on one end and are galvanized a minimum of 12" on the threaded end in accordance with ASTM A-153.

HANDHOLE:

A reinforced hand hole, having a nominal opening of 2.5"x 5" or 3"x 5" will be installed 18" above the base plate. A hand hole cover with hardware will be included along with grounding provisions.

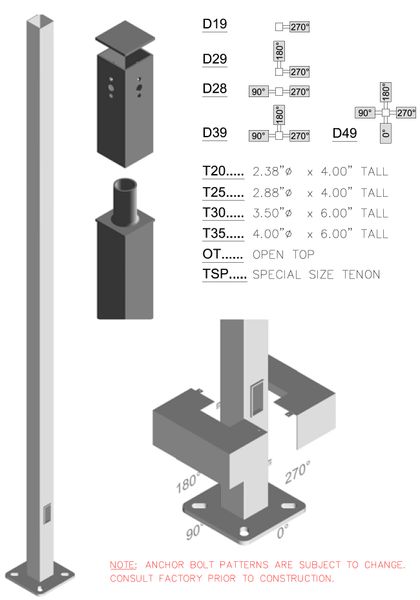

POLE TOP

Each pole will be provided with a welded top plate and tenon or top cap for poles receiving drilling for side mount fixtures.

FINISH:

Standard color finishes shall be coated with TGIC polyester powder or hot dip galvanized to ASTM A-123 specifications.
