American Linear 48" Recessed Architectural LED Linear Fixture - 3" Wide - 3K / 35K / 4K - 2,428 thru 4,864 Lumens - 120-277V
ITEM #:108984
The American Linear Lighting architectural LED linear fixtures are an excellent choice to provide your commercial, office or educational lighting application with long lasting, energy efficient LED illumination. This fixture is both wattage selectable and CCT-tunable, allowing the user to select between three different wattage/lumen output levels and three different white light color temperatures to find the right light output to suit the application. The back-lit extruded acrylic lens ensures high efficiency light output in a minimal form factor for a clean, evenly illuminated surface with minimal glare, and the extruded aluminum alloy outer housing and LED tray are constructed of die-formed steel. This recessed model is designed to integrated with most standard 5/16" and 9/16" T-grid lay-in ceilings as well as hard ceiling applications.

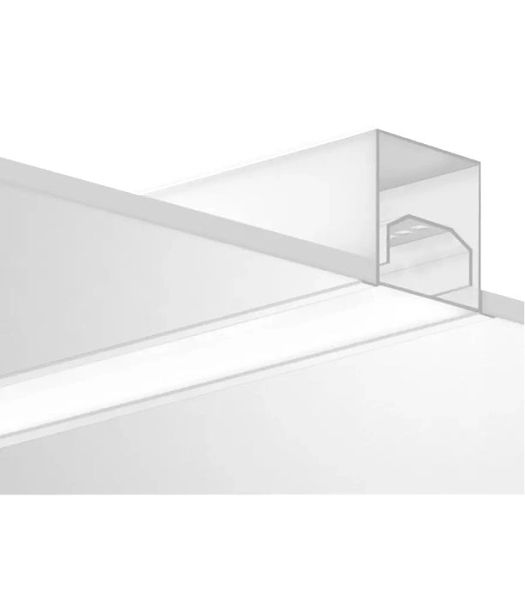

The LE-3R-04-MC-WH is a 48" long, 3" wide recessed mount architectural LED linear fixture that provides 2,428 through 4,864 lumens of CCT-tunable white light and the following features:
- 120-277V operation
- 0-10V dimmable
- CCT-tunable: choose between warm 30K, warm-neutral 35K or neutral 40K white light color temperature options
- Wattage-selectable: choose between 22W / 2,531 lumens, 32W / 3,713 lumens or 44W / 4,864 lumens output options
- Recessed mounts into most standard 5/16" and 9/16" T-grid lay-in ceilings as well as hard ceiling applications
- Linkable with other fixtures to create a continuous run (includes 1 bracket when ordering 2 fixtures, 2 brackets when ordering 3 fixtures, etc)
- Back-lit diodes provide clean, evenly illuminated surface with no glare
- Extruded aluminum 6063-T5 alloy outer housing and LED tray with die-formed steel internal components for strength, alignment and mounting attachment
- Damp location rated
- Luminaire and components are manufactured in the USA
- 100,000 hour rated
- 10 year warranty
Details | |||
---|---|---|---|
Manufacturer: | American Linear Lighting | Manufacturer Part Number: | LE-3R-04-MC-WH |
Lumens: | 4,864 Lumens | Wattage: | 44 Watts |
Input Voltage: | 120-277V | Dimmable: | 0-10V |
Color Temperature: | CCT Tunable | Color: | White |
Rated Hours: | 100,000 Hours | Special Features: | CCT Tunable, Wattage / Lumen Selectable, Damp Location Rated, Linkable |
Made in USA: | Yes | Warranty: | 10 Years |
