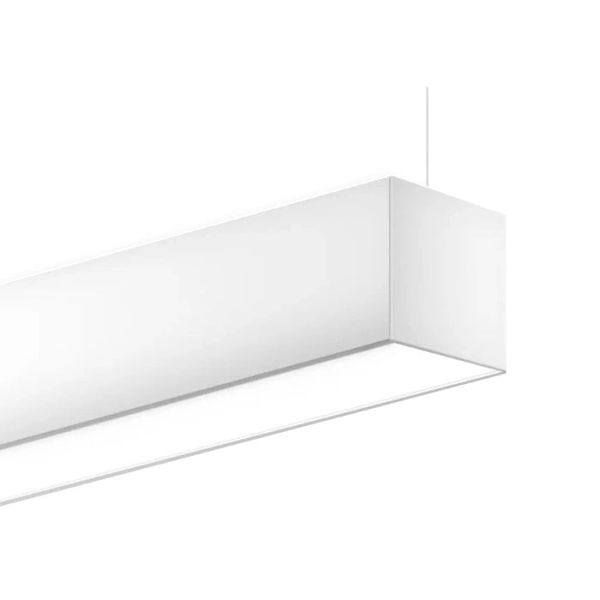

American Linear Lighting 48" Pendant Mount LED Linear Pendant Light - 3" Wide - 3K / 35K / 4K - 2,428 thru 4,864 Lumens - 120-277V

The American Linear Lighting architectural LED linear fixtures are an excellent choice to provide your commercial, office or educational lighting application with long lasting, energy efficient LED illumination. This fixture is both wattage selectable and CCT-tunable, allowing the user to select between three different wattage/lumen output levels and three different white light color temperatures to find the right light output to suit the application. The back-lit extruded acrylic lens ensures high efficiency light output in a minimal form factor for a clean, evenly illuminated surface with minimal glare, and the extruded aluminum alloy outer housing and LED tray are constructed of die-formed steel. This suspension mounted model is suspended by 1/16” galvanized aircraft cables.

The LE-3S-04-UM-WH is a 48" long, 3" wide suspension mount architectural LED linear fixture that provides 2,428 through 4,864 lumens of CCT-tunable white light and the following features:

• 120-277V operation
• 0-10V dimmable
• CCT-tunable: choose between warm 30K, warm-neutral 35K or neutral 40K white light color temperature options
• Wattage-selectable: choose between 22W / 2,531 lumens, 32W / 3,713 lumens or 44W / 4,864 lumens output options
• Suspension mounted by 1/16” galvanized aircraft cables
• Linkable with other fixtures to create a continuous run (includes 1 bracket when ordering 2 fixtures, 2 brackets when ordering 3 fixtures, etc)
• Back-lit diodes provide clean, evenly illuminated surface with no glare
• Extruded aluminum 6063-T5 alloy outer housing and LED tray with die-formed steel internal components for strength, alignment and mounting attachment
• Damp location rated
• Luminaire and components are manufactured in the USA
• 100,000 hour rated
• 10 year warranty
