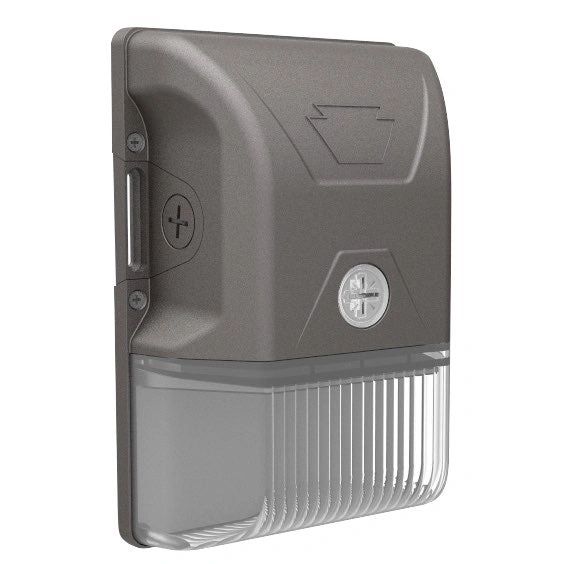

Keystone 20 Watt Slim LED Wall Pack - Photocell - 3K / 4K / 5K - 2,430 Lumens - 120-277V - Bronze
ITEM #:82366
Keystone's 20 watt slim LED wall packs are a great option to provide your building exterior with energy efficient, long lasting LED illumination. Being CCT-tunable, these wall packs allow for a selection between 3000K warm, 4000K neutral and 5000K daylight white light options to suit the users preference and reduce stocking needs for contractors. Their low-profile design and impact-resistant, diffused polycarbonate lens protects the fixture while offering reduced glare for low mounting height applications. A built-in dusk-to-dawn photocell provides even more energy savings by ensuring the light is only on when needed.
The KT-WPLED20-S1-8CSB-VDIM is a 20 watt slim LED wall pack in a bronze finish that provides 2,430 lumens of CCT-tunable (3K / 4K / 5K) white light options and the following features:
- 120-277V operation
- 0-10V dimmable
- CCT-tunable: select between 3000K warm, 4000K neutral and 5000K daylight white light color temperature options
- Integrated photocell
- Includes two dip switches protected by a translucent plug to disable the photocell and adjust color temperature as needed
- Low-profile design less than 4" deep
- Heavy duty die-cast aluminum housing
- Impact resistant polycarbonate lens
- IP65 rated for wet locations
- ADA compliant
- DLC Premium
- Operating temperature: -40º to 122º F
- 100,000 hour rated
- 5 year warranty
Details | |||
---|---|---|---|
Manufacturer: | Keystone | DLC Product ID: | PI7SCMGD |
Manufacturer Part Number: | KT-WPLED20-S1-8CSB-VDIM | UPC: | 843654129112 |
Lumens: | 2,430 Lumens | Lumens Per Watt: | 121.5 |
Wattage: | 20 Watts | Input Voltage: | 120-277V |
Dimmable: | 0-10V | Color Temperature: | CCT Tunable |
Color: | Bronze | Rated Hours: | 50,000 Hours |
Min Operating Temp: | -40 Degrees F | CRI: | 80+ |
Special Features: | CCT Tunable, Photocell Installed, IP65 Rated, ADA Compliant | Warranty: | 5 Years |
