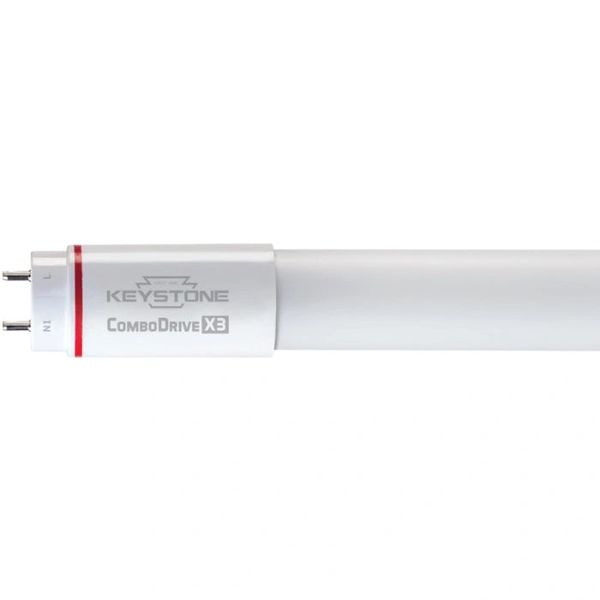

Keystone 36" 11 Watt Single / Opposing End Wired or Ballast Compatible - 4000K - 1,650 Lumens - 120-277V

$14.60 $14.60

ITEM #:106442

Keystone's X3 series T8 LED single or opposing-end wired ballast bypass OR ballast compatible lamps are an excellent choice to replace your conventional T8/T12 fluorescent tubes with long lasting, energy efficient LED illumination.

For ballast compatible (Type-A) installations, these lamps can be installed without any changes to the fluorescent ballast wiring. Installation is as simple as switching out the fluorescent tubes with T8 LED tubes. Should the instant start ballast fail, simply take it out and connect the T8 LED tube directly to the line voltage. This allows you to keep using the same lamp instead of replacing it.

For ballast bypass (Type-B) installations, just connect the tube directly to the 120-277V line voltage following the wiring diagrams. They’re compatible with most instant start electronic T8 ballasts.

Watch the video below to learn more

The KT-LED11T8-36G-840-X3 is a 36" long, 11 watt linear LED T8 lamp that provides 1,650 lumens of neutral 4000K white light and the following features:

  • Universal installation: Type-A ballast compatible AND Type-B ballast bypass 120-277V operation
  • Single AND double (opposing) ended wiring method works on non-shunted sockets
  • Dimmable when operated off a dimmable ballast as a Type-A ballast compatible installation
  • G13 medium bi-pin bases
  • Frosted lens eliminates pixelation
  • Damp location rated
  • Operating temperature: -4º to 113º F
  • 50,000 hour rated
  • 5 year warranty
Details
Details
Manufacturer: Keystone Manufacturer Part Number: KT-LED11T8-36G-840-X3
UPC: 843654134215 Lumens: 1,650 Lumens
Lumens Per Watt: 150 Wattage: 11 Watts
Input Voltage: Ballast Dependent, 120-277V, 120-277V or Ballast Dependent Color Temperature: 4000K
Base Type: G13 Rated Hours: 50,000 Hours
Min Operating Temp: -4 Degrees F CRI: 80+
Special Features: Damp Location Rated Warranty: 5 Years
