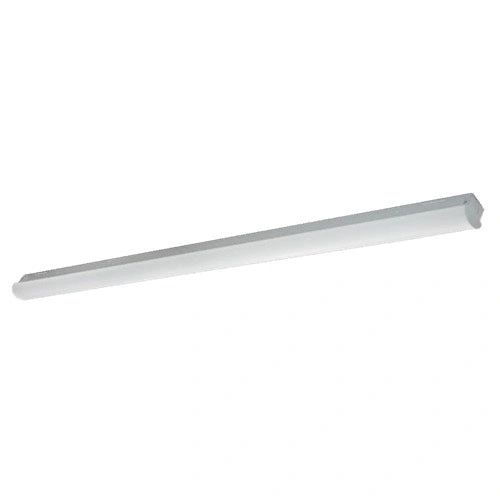

Keystone 96" LED Microstrip Fixture - 35K / 4K / 5K - 7,668 thru 12,060 Lumens - 120-277V

$160.93 $160.93

ITEM #:94077

The XFit Microstrip LED series of strip fixtures by Keystone Technologies are an excellent choice to provide your general lighting application with long lasting, energy efficient LED illumination. The compact form factor of these fixtures make them a perfect choice for installation in restrictive areas, while still providing a powerful light output to suit your lighting needs. These fixtures are both wattage selectable and CCT-tunable, allowing the user to select between 3 different wattage/lumen output levels and 3 different white light color temperatures to find the right light output to suit your application via a switch on the driver. They are surface mountable, with end-to-end connectors and v-hook chain mounts available (sold separately- see 'frequently bought together' products).

The KT-MSLED90PS-8-8CSA-VDIM is a 96" long wattage adjustable LED strip fixture that provides 7,668 through 12,060 lumens of CCT-tunable white light and the following features:

  • 120-277V operation
  • 0-10V dimmable
  • Wattage selectable: choose between 54W / 7,776 lumens, 75W / 10,275 lumens, or 90W / 12,060 lumens
  • CCT-tunable: choose between warm-neutral 35K, neutral 40K, or daylight 50K white light color temperatures
  • Thin form factor - only 1.89" wide and 2.88" tall
  • Frosted lens
  • Compatible with Keystone occupancy sensors, 480-277V step down transformers and SmartSafe emergency LED drivers
  • Damp location rated
  • DLC Premium
  • Operating temperature: -4º to 122º F
  • 50,000 hour rated
  • 5 year warranty
Details
Details
Manufacturer: Keystone Manufacturer Part Number: KT-MSLED90PS-8-8CSA-VDIM
UPC: 843654134499 Lumens: 12,060 Lumens
Lumens Per Watt: 134 Wattage: 90 Watts
Input Voltage: 120-277V Dimmable: 0-10V
Color Temperature: CCT Tunable Rated Hours: 50,000 Hours
Min Operating Temp: -4 Degrees F CRI: 80+
Special Features: CCT Tunable, Wattage / Lumen Selectable, Damp Location Rated Warranty: 5 Years
