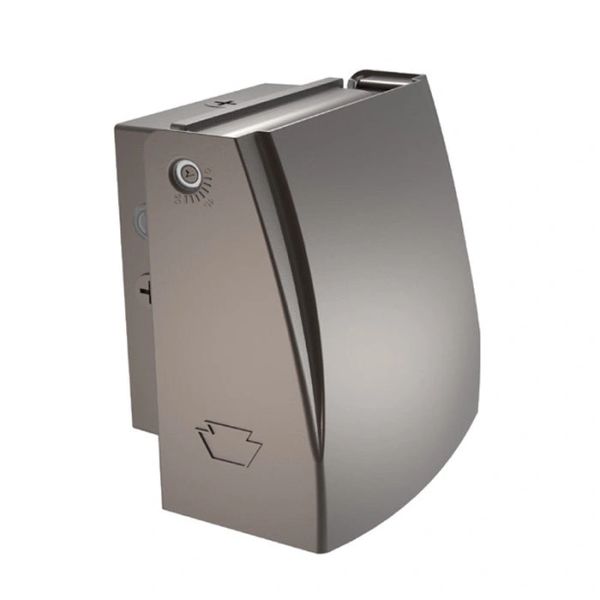

Keystone Adjustable LED Wall Pack - Photocell - 3K / 4K / 5K - 6,319 thru 10,875 Lumens - 120-277V
ITEM #:106606
The adjustable LED wall pack by Keystone Technologies is an excellent choice to provide long lasting, energy efficient LED illumination for your exterior facade lighting application. Being field adjustable from 0-90º, it allows for light positioning to illuminate areas missed by traditional forward throw wall packs. The heavy die-cast aluminum housing enhances performance and reliability, and the integrated photocell allows for even more efficiency of operation.
This wall pack is both wattage selectable and CCT-tunable, allowing the user to select between 3 different wattage/lumen output levels and 3 different white light color temperatures to find the right light output to suit the application.
The KT-WPLED75PS-M3-8CSB-VDIM is a 75 watt adjustable LED wall pack that provides 6,319 through 10,875 lumens of CCT-tunable white light color temperatures and the following features:
- 120-277V operation
- 0-10V dimmable
- Adjustable direction from 0-90º
- CCT-tunable: choose between warm 30K, neutral 40K or daylight 50K white light color temperatures
- Wattage-selectable: choose between 45W / 6,975 lumens, 60W / 9,000 lumens or 75W / 10,875 lumens
- Integrated dusk-to-dawn photocell
- IP65 wet location rated
- DLC 5.1 Premium
- Operating temperature: -40º to 122º F
- 100,000 hour rated
- 5 year warranty
| Details | |||
|---|---|---|---|
| Manufacturer: | Keystone | Manufacturer Part Number: | KT-WPLED75PS-M3-8CSB-VDIM |
| UPC: | 843654141862 | Lumens: | 10,875 Lumens |
| Lumens Per Watt: | 145 | Wattage: | 75 Watts |
| Input Voltage: | 120-277V | Dimmable: | 0-10V |
| Color Temperature: | CCT Tunable | Color: | Bronze |
| Rated Hours: | 100,000 Hours | Equivalent: | 320 Watts HID |
| Min Operating Temp: | -40 Degrees F | CRI: | 80+ |
| Special Features: | CCT Tunable, Wattage / Lumen Selectable, Photocell Installed, IP65 Rated | Warranty: | 5 Years |
