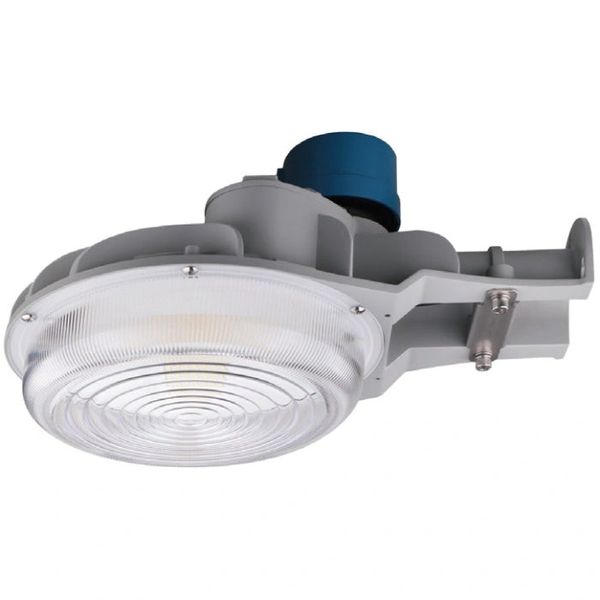

Keystone LED Dusk-to-Dawn Fixture - 3K / 4K / 5K - 5,200 thru 9,250 Lumens - 120-277V

$134.40 $134.40

ITEM #:107527

The Keystone dusk-to-dawn LED fixture is an excellent choice to provide your exterior facade, security or entryway application with long lasting, energy efficient LED illumination. This fixture is both wattage selectable and CCT-tunable, allowing the user to select between 3 different wattage/lumen output levels and 3 different white light color temperatures to find the right light output to suit the application.The compact design matches the appearance and light distribution of legacy HID fixtures, and the heavy-duty die-cast aluminum housing is built with ample heat sinking for enhanced thermal performance.

The KT-ALED60PS-D2D-WM-8CSB-VDIM is a wattage selectable LED dusk-to-dawn fixture that provides 5,200 through 9,250 lumens of daylight 5000K white light and the following features:

  • 120-277V operation
  • 0-10V dimming
  • Wattage selectable: choose between 30W / 5,200 lumens, 40W / 6,850 lumens or 60W / 9,250 lumens output options
  • CCT-tunable: choose between warm 30K, neutral 40K or daylight 50K white light color temperature options
  • Integrated dusk-to-dawn photocell
  • Compact design matches appearance and light distribution of legacy HID, optimized for one for one replacements
  • Heavy-duty, die-cast aluminum housing with ample heat sinking for enhanced thermal performance
  • Impact resistant and highly diffused poly carb lens with anti-yellowing agent, offers reduced glare for low mounting height applications
  • Mounts directly to a structure or a pole arm of 1 5/8”– 2 3/8” diameter with universal clamp
  • 24" curved pole arm kit available (sold separately - see 'frequently bought together' products)
  • IP65 wet location rated
  • DLC Premium
  • Operating temperature: -40º to 122º F
  • 50,000 hour rated
  • 5 year warranty
Details
Details
Manufacturer: Keystone Manufacturer Part Number: KT-ALED60PS-D2D-WM-8CSB-VDIM
UPC: 843654131610 Lumens: 9,250 Lumens
Lumens Per Watt: 154.17 Wattage: 60 Watts
Input Voltage: 120-277V Dimmable: 0-10V
Color Temperature: CCT Tunable Rated Hours: 50,000 Hours
Min Operating Temp: -40 Degrees F CRI: 80+
Special Features: CCT Tunable, Wattage / Lumen Selectable, Photocell Installed, IP65 Rated Warranty: 5 Years
