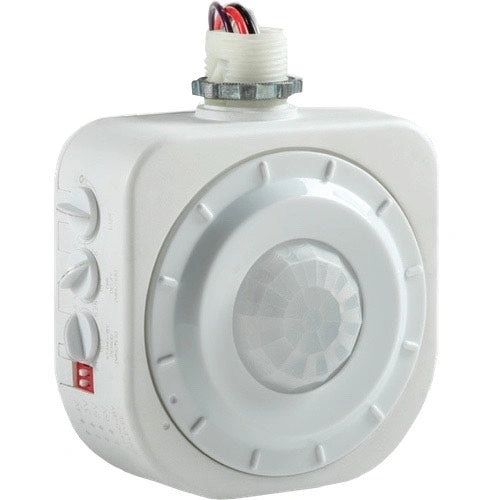

Keystone PIR Occupancy Sensor for Linear LED High Bays - 0-10V Dimming - 120-277V

Keystone's sensors are the smart solution for minimizing energy consumption and maximizing lighting system life. Utilizing state-of-the-art electronics and optics, Keystone’s occupancy sensors provide a cost-effective solution for dramatically improving the return on your investment. This passive infrared (PIR) occupancy sensor mounts to linear LED high bay fixtures.

When motion is detected: lighting will turn on and remain at maximum set brightness until motion is no longer detected for duration of time delay.

With dimming wires connected: if no further motion is detected after duration of time delay, lighting will dim and remain dimmed for duration of stand-by period.

With no dimming wires connected: if no further motion is detected after combined duration of time delay and stand-by period, lighting will turn off.

Features:

• Input voltage: 120-277V / output voltage: 1-6V
• 0-10V dimmable
• 360º sensor provides wide 60' diameter coverage area
• Four levels of output for dimming control
• Adjustable time delay and stand-by period: 30 seconds to 30 minutes
• Adjustable photocell sensitivity
• 20' to 40' mounting height
• LED for activity indication
• UL listed
• Frequency: 50/60 Hz
• Maximum load: 800VA at 120V, 1200VA at 277V
• Maximum input current: 6.7A at 120V, 4.3A at 277V
• Operating temperature: 14º to 140º F
• 5 year warranty
