Light Efficient Design 20" LED Light Bar - 27K / 3K / 35K - 696 thru 1,524 Lumens - 120-277V

$44.54 $44.54

ITEM #:78055

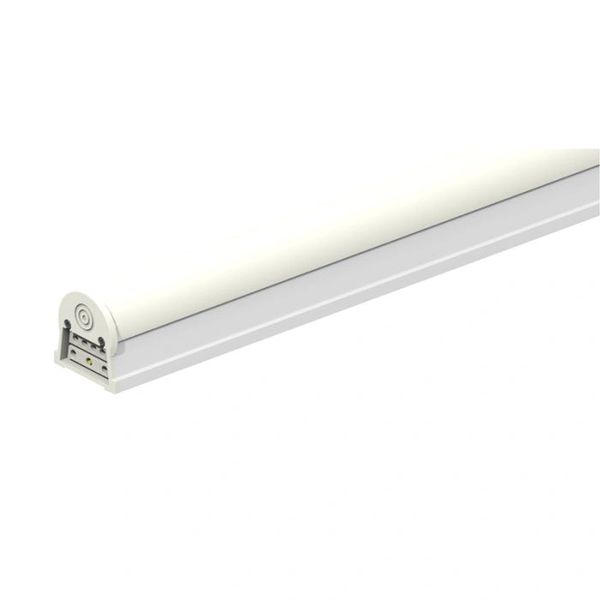

The Light Efficient Design linear LED light bar transformer is an all-in-one option for your linear commercial or residential illumination needs. They are ETL and DLC listed to work both as a new fixture for under cabinet, stairway, coves and ceilings as well as a retrofit option for your outdated fluorescent linear high bay, wrap, vapor tight, strip or troffer fixtures. Each light bar is both wattage/lumen selectable and CCT-tunable, allowing for a variety of lumen output and color temperature combinations to choose from before or after installation. Connect up to 40 fixtures together for a continuous run using either the available linking cables or seamless connectors (sold separately), and can be surface mounted or suspension mounted to suit your preference. Watch the videos below to learn more.

The RP-LBI-G1-2F-6W-27K-WC2 is a 20" long 6-12 watt LED light bar that provides 696-1,524 lumens of CCT-tunable (27/30/35K) white light and the following features:

  • 12V operation
  • 0-10V dimmable
  • CCT-tunable: choose between warm 27K, warm 30K, or warm-neutral 35K white light color temperatures
  • Wattage selectable: choose between 6 watt, 9 watt or 12 watt levels
  • Link up to 40 fixtures together using linking cables or seamless connectors (sold separately)
  • Surface mount (2x surface mount magnetic clips with screws included) or suspended mount (when using suspended in-line bracket kit - sold separately)
  • Magnetic backing allows for quick and easy installation and removal
  • Optional emergency battery backup driver available
  • Damp location rated
  • DLC Standard
  • Operating temp: -13º to 140º F
  • 100,000 hour rated
  • 10 year warranty

Contact our lighting specialists for a quote or layout today!

Details
Details
Manufacturer: Light Efficient Design Under Cabinet Type: Line Voltage, Light Bars, Linear Linkable, CCT Tunable
DLC Product ID: PO6968KO Manufacturer Part Number: RP-LBI-G1-2F-6W-27K-WC2
UPC: 844006024826 Lumens: 1,524 Lumens
Lumens Per Watt: 127 Wattage: 12 Watts
Input Voltage: 120-277V Dimmable: 0-10V
Color Temperature: CCT Tunable Rated Hours: 100,000 Hours
Min Operating Temp: -13 Degrees F CRI: 80+
Special Features: CCT Tunable, Wattage / Lumen Selectable, Damp Location Rated, Linkable Warranty: 10 Years
