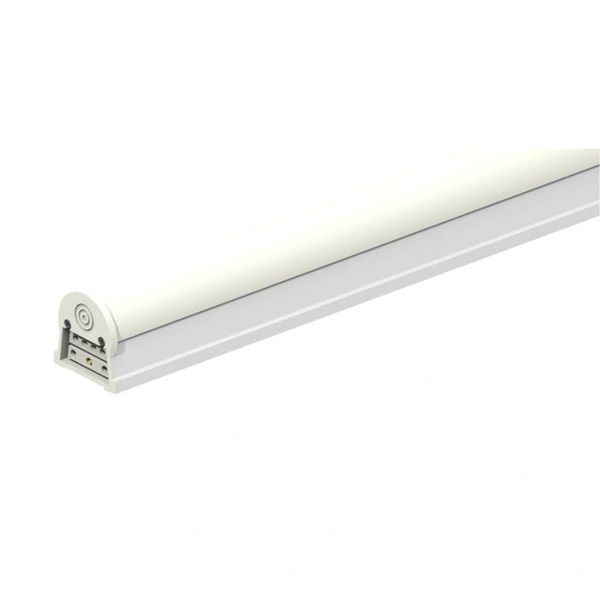

Light Efficient Design 32" LED Light Bar - 27K / 3K / 35K - 1,270 thru 1,980 Lumens - 120-277V

The Light Efficient Design linear LED light bar transformer is an all-in-one option for your linear commercial or residential illumination needs. They are ETL and DLC listed to work both as a new fixture for under cabinet, stairway, coves and ceilings as well as a retrofit option for your outdated fluorescent linear high bay, wrap, vapor tight, strip or troffer fixtures. Each light bar is both wattage/lumen selectable and CCT-tunable, allowing for a variety of lumen output and color temperature combinations to choose from before or after installation. Connect up to 40 fixtures together for a continuous run using either the available linking cables or seamless connectors (sold separately), and can be surface mounted or suspension mounted to suit your preference. Watch the videos below to learn more.

The RP-LBI-G1-3F-10W-27K-WC2 is a 32" long 10-15 watt LED light bar that provides 1,270 to 1,980 lumens of CCT-tunable (27/30/35K) white light and the following features:

• 12V operation
• 0-10V dimmable
• CCT-tunable: choose between warm 27K, warm 30K, or warm-neutral 35K white light color temperatures
• Wattage selectable: choose between 10 watt, 12 watt or 15 watt levels
• Link up to 40 fixtures together using linking cables or seamless connectors (sold separately)
• Surface mount (2x surface mount magnetic clips with screws included) or suspended mount (when using suspended in-line bracket kit - sold separately)
• Magnetic backing allows for quick and easy installation and removal
• Optional emergency battery backup driver available
• Damp location rated
• DLC Standard
• Operating temp: -13º to 140º F
• 100,000 hour rated
• 10 year warranty

Contact our lighting specialists for a quote or layout today!
