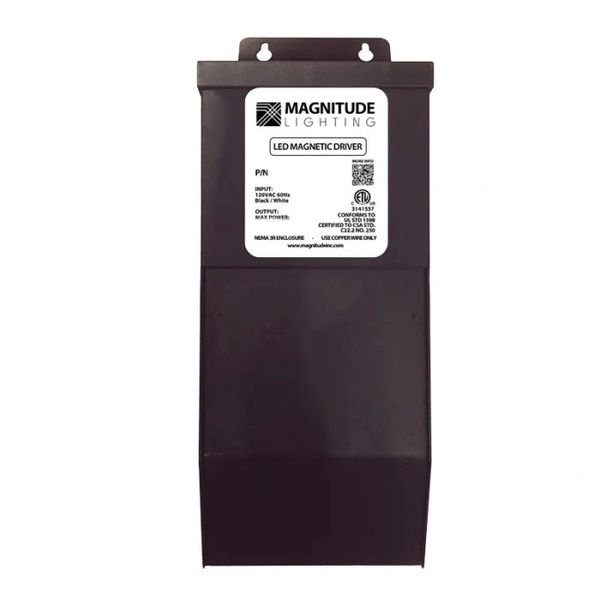

Magnitude AC Series LED Driver w/ Junction Box - 100 Watt Capacity - Dimmable - Auto Reset - 120V Input / 12V AC Output

Magnitude AC Series LED Driver w/ Junction Box - 100 Watt Capacity - Dimmable - Auto Reset - 120V Input / 12V AC Output

The Magnitude Lighting AC-Series are the most compact magnetic core dimmable transformers on the market, making them the perfect choice for landscape and other indoor or outdoor lighting applications. Each driver is encased in a high quality metal enclosure that includes multiple 7/8" knock-outs for easy installation, and is equipped with circuit breakers to protect both the driver and the load. These magnetic transformers are phase dimmable with standard leading edge MLV TRIAC dimmers.

Features:

• Input voltage: 120VAC - 50/60Hz
• Output voltage: 12V AC
• Maximum wattage capacity: 100 watts
• Driver type: magnetic constant voltage w/ auto reset breaker
• Installation: integrated junction box with multiple 7/8" knock-outs
• Dimming: phase-dimmable with forward edge MLV TRIAC dimmers
• Operating temperature: -22º to 113º F
• Certifications: ETL listed, UL8750, ROHS, cETLus
• Warranty: 5 years
