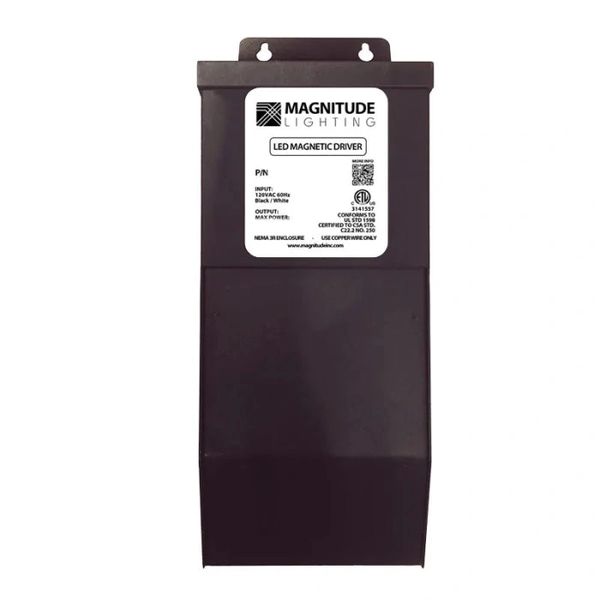

Magnitude AC Series LED Driver w/ Junction Box - 150 Watt Capacity - Dimmable - Manual Reset - 120V Input / 12V AC Output

$104.55 $104.55

ITEM #:106517

Magnitude AC Series LED Driver w/ Junction Box - 150 Watt Capacity - Dimmable - Manual Reset - 120V Input / 12V AC Output

The Magnitude Lighting AC-Series are the most compact magnetic core dimmable transformers on the market, making them the perfect choice for landscape and other indoor or outdoor lighting applications. Each driver is encased in a high quality metal enclosure that includes multiple 7/8" knock-outs for easy installation, and is equipped with circuit breakers to protect both the driver and the load. These magnetic transformers are phase dimmable with standard leading edge MLV TRIAC dimmers.

Features:

  • Input voltage: 120VAC - 50/60Hz
  • Output voltage: 12V AC
  • Maximum wattage capacity: 150 watts
  • Driver type: magnetic constant voltage w/ manual reset breaker
  • Installation: integrated junction box with multiple 7/8" knock-outs
  • Dimming: phase-dimmable with forward edge MLV TRIAC dimmers
  • Operating temperature: -22º to 113º F
  • Certifications: ETL listed, UL8750, ROHS, cETLus
  • Warranty: 5 years
Details
Details
Manufacturer: Magnitude Manufacturer Part Number: M150SOD
UPC: 810020791549 Wattage Capacity: 150 Watts
Input Voltage: 120V Output Voltage: 12V AC
Dimmable: 120V Warranty: 5 Years
