Magnitude AC Series LED Driver w/ Junction Box - 500 Watt Capacity - Dimmable - Manual Reset - 120V Input / 24V AC Output
$233.75
$233.75
ITEM #:106528
Magnitude AC Series LED Driver w/ Junction Box - 500 Watt Capacity - Dimmable - Manual Reset - 120V Input / 24V AC Output

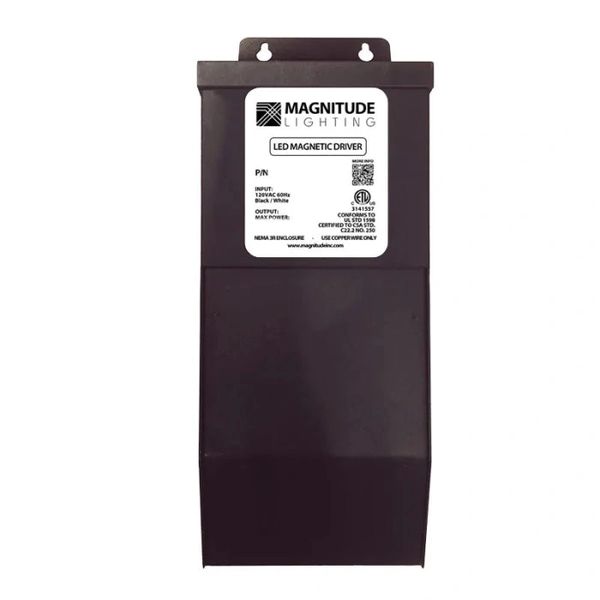

The Magnitude Lighting AC-Series are the most compact magnetic core dimmable transformers on the market, making them the perfect choice for landscape and other indoor or outdoor lighting applications. Each driver is encased in a high quality metal enclosure that includes multiple 7/8" knock-outs for easy installation, and is equipped with circuit breakers to protect both the driver and the load. These magnetic transformers are phase dimmable with standard leading edge MLV TRIAC dimmers.
Features:
- Input voltage: 120VAC - 50/60Hz
- Output voltage: 24V AC
- Maximum wattage capacity: 500 watts
- Driver type: magnetic constant voltage w/ manual reset breaker
- Installation: integrated junction box with multiple 7/8" knock-outs
- Dimming: phase-dimmable with forward edge MLV TRIAC dimmers
- Operating temperature: -22º to 113º F
- Certifications: ETL listed, UL8750, ROHS, cETLus
- Warranty: 5 years
| Details | |||
|---|---|---|---|
| Manufacturer: | Magnitude | Manufacturer Part Number: | M500S24OD |
| UPC: | 810020790856 | Wattage Capacity: | 500 Watts |
| Input Voltage: | 120V | Output Voltage: | 24V AC |
| Dimmable: | 120V | Warranty: | 5 Years |
