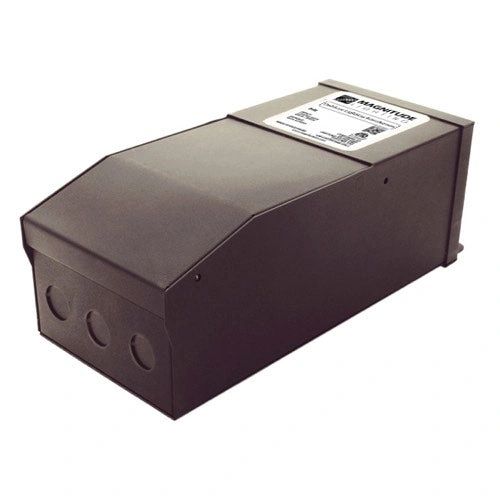

Magnitude X Series 1,200 Watt Magnetic Dimmable Low-Voltage Transformer - Enclosure w/ Junction Box - 120V Input / Multi-Tap 12-24VAC Output

$499.80 $499.80

ITEM #:106547

Magnitude X Series 1,200 Watt Magnetic Dimmable Low-Voltage Transformer - Enclosure w/ Junction Box - 120V Input / Multi-Tap 12-24VAC Output

The Magnitude Lighting X-Series multi-tap magnetic dimmable transformers are the perfect choice for landscape and other indoor or outdoor lighting applications. They are encased in a high-quality metal enclosure that includes multiple 7/8" knock-outs for easy installation and each unit is equipped with push-to-reset breakers (one on each output) to protect both the driver and the load. These magnetic transformers are phase dimmable with standard leading edge MLV TRIAC dimmers.

Features:

  • Input voltage: 120VAC - 50/60Hz
  • Output voltage: multi-tap 12-24V AC
  • Maximum wattage capacity: 1,200 watts
  • Driver type: magnetic constant voltage multi-tap
  • Installation: integrated junction box with multiple 7/8" knock-outs
  • Dimming: phase-dimmable with forward edge MLV TRIAC dimmers
  • Protection: secondary push-to-reset circuit breaker
  • Operating temperature: -22º to 122º F
  • Certifications: ETL listed, UL8750, ROHS, cETLus
  • Warranty: 5 years
Details
Details
Manufacturer: Magnitude Manufacturer Part Number: X1200SOD
UPC: 810020791150 Wattage: 1,200 Watts
Wattage Capacity: 1,200 Watts Input Voltage: 120V
Output Voltage: 12 / 24VAC Dimmable: 120V
Warranty: 5 Years
