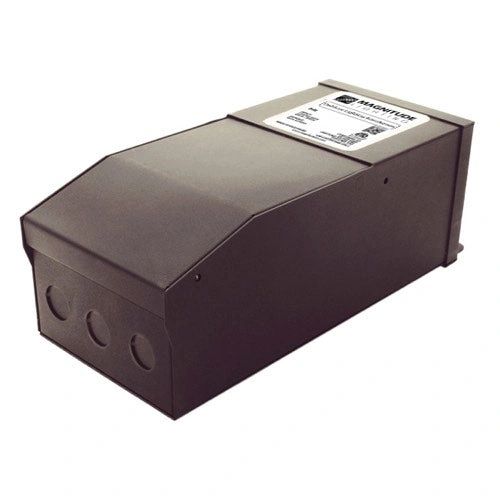

Magnitude X Series 600 Watt Magnetic Dimmable Low-Voltage Transformer - Enclosure w/ Junction Box - 277V Input / Multi-Tap 12-24VAC Output

Magnitude X Series 600 Watt Magnetic Dimmable Low-Voltage Transformer - Enclosure w/ Junction Box - 277V Input / Multi-Tap 12-24VAC Output

The Magnitude Lighting X-Series multi-tap magnetic dimmable transformers are the perfect choice for landscape and other indoor or outdoor lighting applications. They are encased in a high-quality metal enclosure that includes multiple 7/8" knock-outs for easy installation and each unit is equipped with push-to-reset breakers (one on each output) to protect both the driver and the load. These magnetic transformers are phase dimmable with standard leading edge MLV TRIAC dimmers.

Features:

• Input voltage: 277VAC - 50/60Hz
• Output voltage: multi-tap 12-24V AC
• Maximum wattage capacity: 600 watts
• Installation: integrated junction box with multiple 7/8" knock-outs
• Driver type: magnetic constant voltage multi-tap
• Dimming: phase-dimmable with forward edge MLV TRIAC dimmers
• Operating temperature: -22º to 122º F
• Certifications: ETL listed, UL8750, ROHS, cETLus
• Warranty: 5 years
