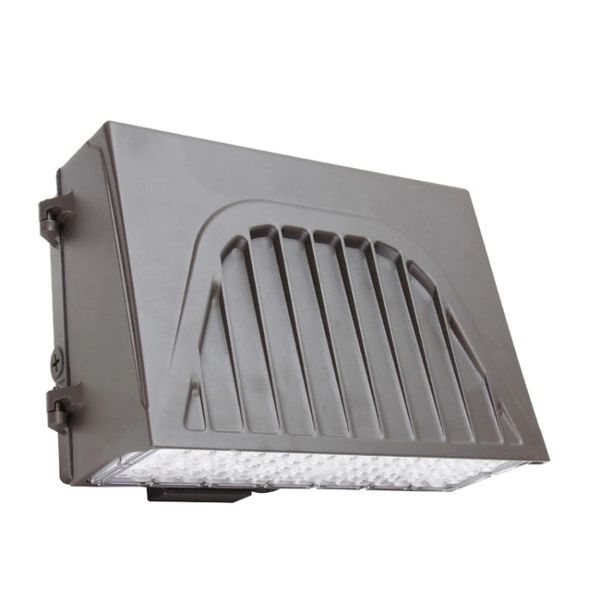

MaxLite 70 Watt Full Cutoff LED Wall Pack - 3K / 4K / 5K - 10,100 Lumens - 120-277V
$205.00
$205.00
ITEM #:106656
The WallMax series of CCT-tunable full cutoff LED wall packs by MaxLite are an excellent choice to provide long lasting, energy efficient LED illumination for your outdoor facade applications. Being CCT-tunable, these wall packs allow the installer or end user to choose between warm 30K, neutral 40K or daylight 50K white light color temperatures to best suit the application. They are constructed of durable die cast aluminum housing with polycarbonate LED lens and sealed housing with control nodes that are mounted internally without impacting the fixture sealing or aesthetics.
The WPC70UT4-CSBPCCR is a 70 watt full cutoff LED wall pack that provides 10,100 lumens of CCT-tunable white light and the following features:
- 120-277V operation
- 0-10V dimmable
- CCT-tunable: choose between warm 30K, neutral 40K or daylight 50K white light color temperatures
- Internal photocell with on/off switch
- IP65 wet location rated
- Type IV light distribution
- Constructed of durable die cast aluminum housing with polycarbonate LED lens
- Sealed housing - control nodes are mounted internally without impacting the fixture sealing or aesthetics
- Controls ready for field installable C-Max controls
- Fits electrical box or mounts directly
- DLC Premium
- Title-24 compliant
- Operating temperature: -22º to 104º F
- 100,000 hour rated
- 10 year warranty
| Details | |||
|---|---|---|---|
| Manufacturer: | MaxLite | Manufacturer Part Number: | WPC70UT4-CSBPCCR |
| UPC: | 767627030970 | Lumens: | 10,100 Lumens |
| Lumens Per Watt: | 144.29 | Wattage: | 70 Watts |
| Input Voltage: | 120-277V | Dimmable: | 0-10V |
| Color Temperature: | CCT Tunable | Color: | Bronze |
| Rated Hours: | 100,000 Hours | Min Operating Temp: | -22 Degrees F |
| CRI: | 80+ | Special Features: | CCT Tunable, Photocell Installed, IP65 Rated, Title 20 / 24 Compliant |
| Warranty: | 10 Years | ||
