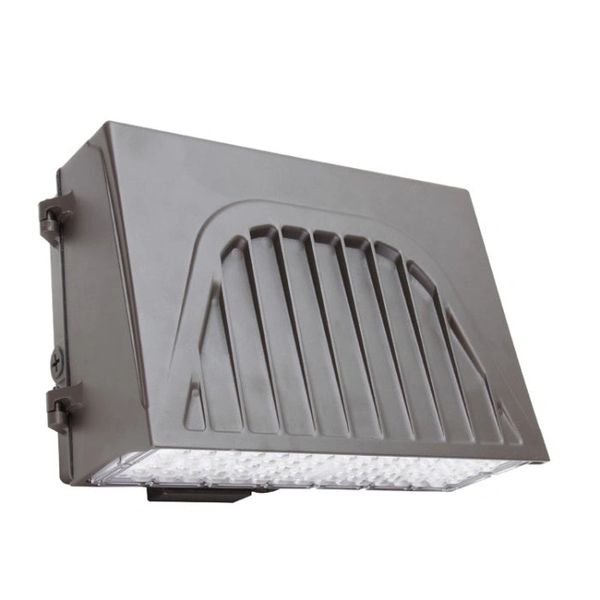

MaxLite Full Cutoff LED Wall Pack - 3K / 4K / 5K - 5,500 thru 13,500 Lumens - 120-277V

The WallMax series of CCT-tunable full cutoff LED wall packs by MaxLite are an excellent choice to provide long lasting, energy efficient LED illumination for your outdoor facade applications. Being both CCT-tunable, and wattage selectable, these wall packs allow the installer or end user to choose between warm 30K, neutral 40K or daylight 50K white light color temperatures as well as 40, 70 and 100 wattage and resulting lumen output levels to best suit the application. They are constructed of durable die cast aluminum housing with polycarbonate LED lens and sealed housing with control nodes that are mounted internally without impacting the fixture sealing or aesthetics.

The WPC100UT4-WCSBPCCR is a wattage-selectable full cutoff LED wall pack that provides 5,500 through 13,500 lumens of CCT-tunable white light and the following features:

• 120-277V operation
• 0-10V dimmable
• CCT-tunable: choose between warm 30K, neutral 40K or daylight 50K white light color temperatures
• Wattage selectable: choose between 40W / 5,800 lumens, 70W / 10,100 lumens or 100W / 13,500 lumens output levels
• Internal photocell with on/off switch
• IP65 wet location rated
• Type IV light distribution
• Constructed of durable die cast aluminum housing with polycarbonate LED lens
• Sealed housing - control nodes are mounted internally without impacting the fixture sealing or aesthetics
• Controls ready for field installable C-Max controls
• Fits electrical box or mounts directly
• DLC Premium
• Title-24 compliant
• Operating temperature: -22º to 104º F
• 100,000 hour rated
• 10 year warranty
