RAB 20" 160 Watt Linear LED High Bay - 5000K - 20,996 Lumens - 120-277V - White

$142.80 $142.80

ITEM #:88293

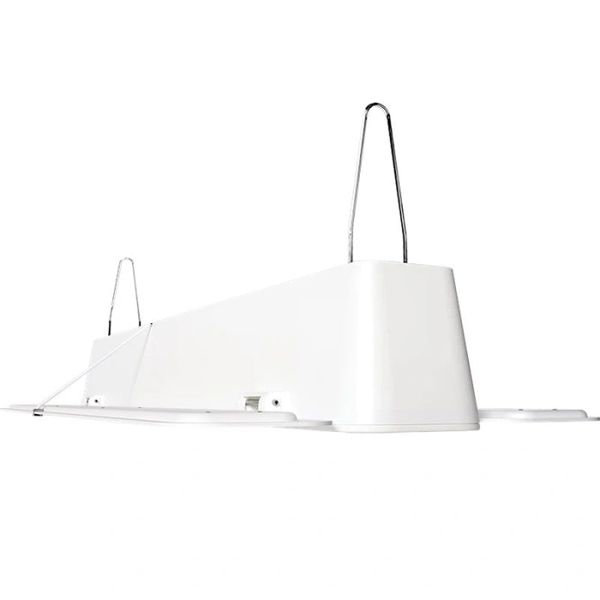

The RAB L34 series of LED linear high bays are the newest innovation in high bay design, featuring a compact and lightweight design that is half the size and weight of traditional high bays. The fold-up wings on each side of the fixture body are filled with high-efficiency diodes and allow for adjustment to 5 different angles to create the light distribution that suits the application or user preference (0º, 15º, 27º, 39º or 50º angles). Being manufactured with up to 30% leftover remelted plastic from RAB's own production process and being shipped in much smaller packaging make these fixtures a more eco-friendly option compared to traditional linear high bays. Each fixture also has integrated 2.5Kv surge protection, are suitable for installation in damp locations, and are DLC Standard rated for even more savings when taking advantage of local utility rebates.

The L34-180 is a 160 watt, 20" long linear LED high bay with adjustable wings that provide 20,996 lumens of 5000K daylight white light and the following features:

  • 120-277V operation
  • 0-10V dimmable
  • Adjustable side wings lock into place in 5 different angles: 0º, 15º, 27º, 39º or 50º
  • Made with up to 30% leftover remelted plastic for less material waste
  • Equivalent to 250W metal halide fixtures
  • V hooks and optional pendant mounting
  • 2.5Kv surge protection
  • Damp location rated
  • DLC Standard
  • Operating temperature: -4º to 122º F
  • 50,000 hour rated
  • 5 year warranty
Manufacturer: RAB DLC Product ID: PVWC2J26
Manufacturer Part Number: L34-180 UPC: 192552001748
Lumens: 20,996 Lumens Lumens Per Watt: 131.23
Wattage: 160 Watts Input Voltage: 120-277V
Dimmable: 0-10V Color Temperature: 5000K
Color: White Rated Hours: 50,000 Hours
Equivalent: 250 Watts HID Min Operating Temp: -4 Degrees F
CRI: 80+ Special Features: Damp Location Rated, Surge Protection
Warranty: 5 Years
