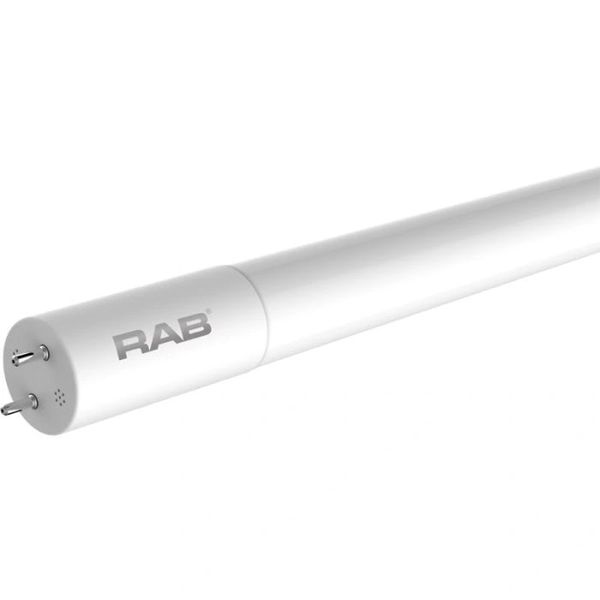

RAB 24" 9 Watt T8 LED - Ballast Bypass - Single End or Opposing End Wired - 3500K - 1,100 Lumens - 120-277V
$12.46
$12.46
ITEM #:60679
Replace your conventional T8/T12 fluorescent tubes with RAB's T8 LED ballast bypass lamp. These lamps can be wired either using single-ended or opposing-ended wiring method for maximum flexibility in the field, while being approximately 40% more energy efficient than standard T8 fluorescent tubes.
The T8-9-24G-835-SD-BYP is a 24" long, 9 watt LED tube lamp that provides 1,100 lumens of 3500K warm-neutral white light and the following features:
- Type B ballast bypass operation
- Capable of single or opposing-ended wiring for maximum in-field flexibility, and works on shunted or non-shunted sockets
- Internal driver eliminates the need for external ballasts or drivers
- Base: G13, medium bi-pin
- Equivalent to 17 watt fluorescent tubes
- Suitable for use in enclosed and open fixtures
- Damp location rated
- Start up instantly, no flicker or hum like conventional fluorescent tubes
- Environmentally friendly, no mercury used and are easy to recycle
- DLC 5.1
- 50,000 hour rated
- 5 year warranty
| Details | |||
|---|---|---|---|
| Manufacturer: | RAB | Manufacturer Part Number: | T8-9-24G-835-SD-BYP |
| UPC: | 019813751764 | Lumens: | 1,100 Lumens |
| Lumens Per Watt: | 122.22 | Wattage: | 9 Watts |
| Input Voltage: | 120-277V | Color Temperature: | 3500K |
| Base Type: | G13 | Rated Hours: | 50,000 Hours |
| Beam Angle: | 210 Degrees | Equivalent: | 17 Watts Fluorescent |
| Min Operating Temp: | -4 Degrees F | CRI: | 80+ |
| Operating Temp: | -4 to 104 F | Special Features: | Damp Location Rated, Enclosed Fixture Rated |
| Warranty: | 5 Years | ||
