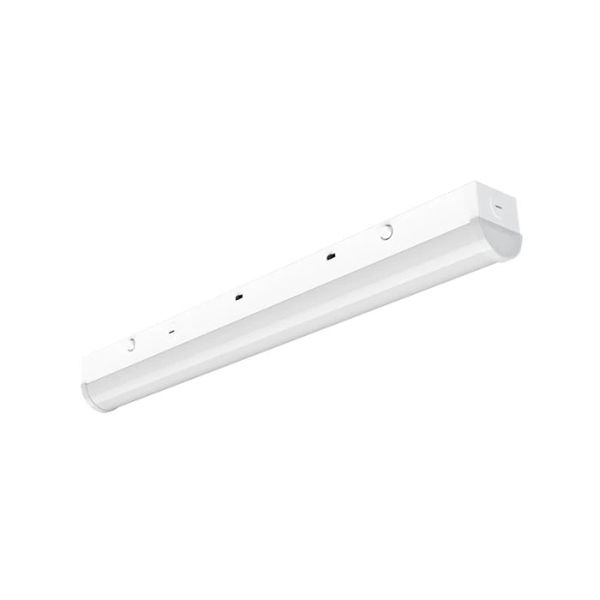

RAB 24" Field-Adjustable Strip - 35K / 40K / 50K - 1,552 thru 2,998 Lumens - 120-277V
ITEM #:109811
RAB's 24'' Field Adjustable Strip Fixture is designed with three field-adjustable wattages and CCTs making it extremely versatile for use in various general-purpose and low-bay applications. Continuous-run mounting is a breeze with the joiner bracket accessory (sold separately). The SR is designed for surface mounting but accessories are available for suspended mounting (V-hooks + 40” chains). Iron housing and polycarbonate lens has these fixtures formulated for high durability and long-lasting color. The SR fixtures are DLC rated and allow for additional savings when taking advantage of local energy utility rebates.
The SR2 provides 1,552 through 2,998 lumens of CCT-tunable white light and the following features:
- 120-277V operation
- 0-10V dimmable
- Wattage-selectable: easily select between 10W / 1,552 lumens, 14W / 2,115 lumens or 19W / 2,998 lumens
- CCT-tunable: easily select between warm-neutral 35K, neutral 4K, or cool 5K white light color temperature options
- Joiner Kit available for daisy chain use. Maximum of 27 fixtures.
- Comes standard with J-Box adapter; accessories available for suspended mount
- DLC 5.1 Premium
- UL Listed for damp locations
- Operating Temp: -4º to 122º F
- 50,000 hour rated
- 5 year warranty
Contact our lighting specialists for a quote or layout today!
Details | |||
---|---|---|---|
Manufacturer: | RAB | DLC Product ID: | S-BY8SM3 |
Manufacturer Part Number: | SR2 | UPC: | 0192552026345 |
Lumens: | 2,998 Lumens | Wattage: | 19 Watts |
Input Voltage: | 120-277V | Dimmable: | 0-10V |
Color Temperature: | CCT Tunable | Mounting Type: | Surface Mount |
Color: | White | Rated Hours: | 50,000 Hours |
Min Operating Temp: | -4 Degrees F | CRI: | 80+ |
Special Features: | CCT Tunable, Wattage / Lumen Selectable, Damp Location Rated, Linkable | Warranty: | 5 Years |
