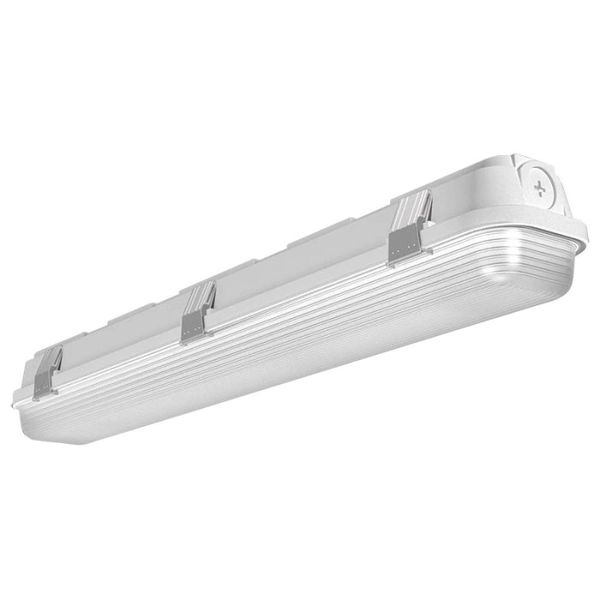

RAB 24" SEAL Linear LED Vapor Tight - 3K / 4K / 5K - 2,040 thru 3,400 Lumens - 120-277V

The SEAL series of LED vapor tight fixtures by RAB are an excellent choice to provide long lasting, energy efficient LED illumination for your canopy, loading dock, tunnel, food preparation or any application that is exposed to the elements or requires constant washdown.

The SEAL series is designed with a durable polycarbonate housing and is IP66 rated for complete protection from dust and oil, and protection from powerful jets of water. It's also NSF rated, NEMA 4X rated, and UL 94-5VA classified for flammability control. Includes quick-mount stainless steel snap on brackets for surface mounting and V-hook brackets for suspension mounting.

This fixture is both wattage selectable and CCT-tunable, allowing the user to select between 3 different wattage/lumen output levels and 3 different white light color temperatures to find the right light output to suit the application. Being DLC Premium rated, these fixtures allow for even more savings when taking advantage of local energy utility rebates.

The SEAL2 is a wattage selectable 24" long LED vapor tight fixture that provides 2,040 through 3,400 lumens of CCT-tunable white light and the following features:

• 120-227V operation
• 0-10V dimmable
• Wattage selectable: choose between 15W / 2,040 lumens, 20W / 5,440 lumens, or 25W / 3,400 lumens
• CCT-tunable: choose between warm-neutral 35K, neutral 40K or cool 50K white light color temperatures
• Diffuse polycarbonate lens for low glare and maximum protection
• Includes quick-mount stainless steel snap on brackets for surface mounting and V-hook brackets for suspension mounting
• Wet location rated
• NSF rated
• 2kV surge protection
• NEMA 4x corrosion protection
• UL 94 5VA flame classification
• DLC Premium
• Operating temperature: -40º to 104º F
• 100,000 hour rated
• 5 year warranty

Click Here to return to GenerationLEDs homepage. We have the spacing table for the SEAL2 fixture (when set at 15W / 2, 070 lumen output option)
