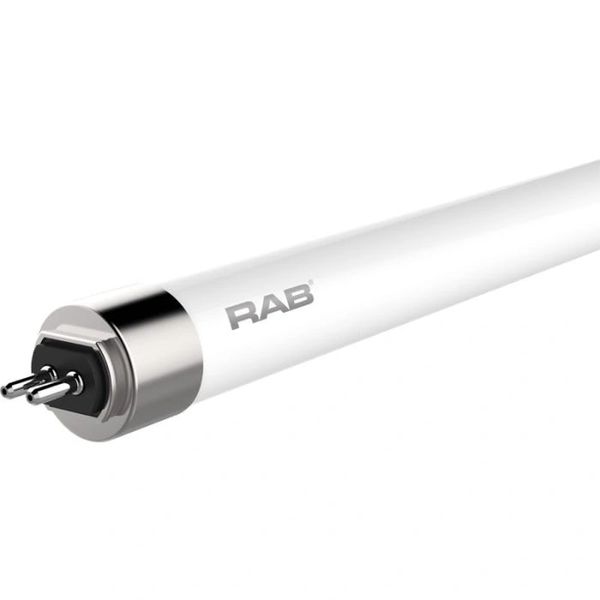

RAB 25 Watt 46" T5HO LED - Ballast Bypass - Opposing End Wired - 5000K - 3,500 Lumens - 120-277V
$15.42
$15.42
ITEM #:60669
Replace your conventional T5 fluorescent tubes with RAB's T5 LED ballast bypass lamp. The opposing-ended line voltage wiring works with shunted and non-shunted sockets - no need to change sockets. This lamp delivers 3,500 lumens of 5000K cool white light, while approximately 40% more energy efficient than standard fluorescent tubes.
- Installation: type B, ballast bypass, opposing-end wire
- Internal driver eliminates the need for external ballasts or drivers
- Capable of single- or opposing-ended wiring for maximum in-field flexibility, works on shunted or non-shunted sockets
- Equivalent to 54W T5 fluorescent lamps
- Base: G5, miniature bi-pin
- Suitable for use in enclosed and open fixtures
- Start up instantly, no flicker or hum like conventional fluorescent tubes
- Environmentally friendly, no mercury used and are easy to recycle
- 50,000 hour rated
- 5 year limited warranty
- Operating temperature: -4º to 104º F
| Details | |||
|---|---|---|---|
| Manufacturer: | RAB | Manufacturer Part Number: | T5-25-48G-850-BYP |
| UPC: | 019813751344 | Lumens: | 3,500 Lumens |
| Lumens Per Watt: | 140 | Wattage: | 25 Watts |
| Input Voltage: | 120-277V | Color Temperature: | 5000K |
| Base Type: | Miniature Bi-Pin | Rated Hours: | 50,000 Hours |
| Beam Angle: | 240 Degrees | Equivalent: | 54 Watts Fluorescent |
| Min Operating Temp: | -4 Degrees F | CRI: | 80+ |
| Operating Temp: | -4 to 104 F | Special Features: | Damp Location Rated, NSF Rated, Enclosed Fixture Rated |
| Warranty: | 5 Years | ||
