RAB 26 Watt LED HAZ Vaporproof - Clear Lens - Die Cast Guard - Pendant Mount - 5000K - 2,503 Lumens - 120-277V
ITEM #:49304
The RAB hazardous location flood lights are an excellent choice to provide durable, shock and vibration resistant lighting to your hazardous location application. The tough die-cast aluminum housings, frames, and mounts along with a closed cell silicone gasket allow these fixtures to be able to withstand shock and vibration as well as all Class 1 Division 2 hazardous location properties while ensuring long-life and safe operation. A polyester power coat finish formulated without the use of VOC or toxic heavy metals create a healthier work environment and reduce local area pollution in case of incident.

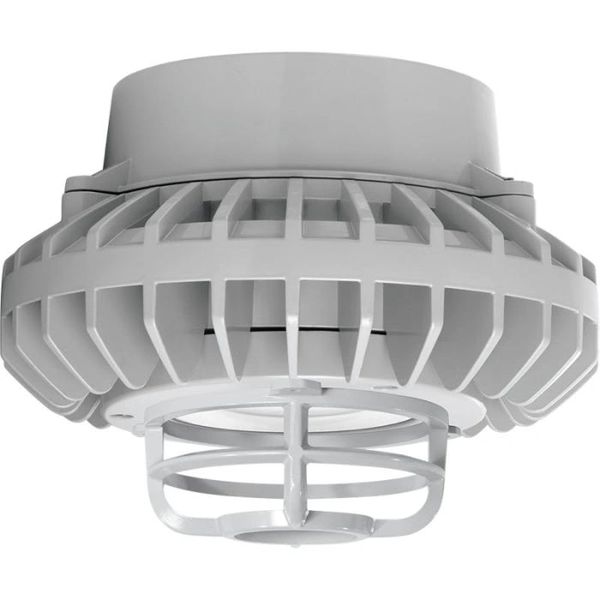

The HAZPLED26CF-DG is a 26 watt hazardous location vaporproof pendant mount LED fixture with a clear flat lens and die cast guard that provides 2,503 lumens of 5000K daylight white light and the following features:
- 120-277V operation
- Pendant mount
- Clear flat lens
- Die cast guard
- Class 1 / Division 2 (groups A/B/C/D) rated
- IP66 wet location rated
- Superior heat sinking with external air-flow fins
- Die-cast aluminum housing, lens frame and mounting arm
- UL 1598, UL 8750 and UL 844 ratings
- Operating temperature: -40º to 131º F
- 100,000 hour rated
- 5 year warranty
| Details | |||
|---|---|---|---|
| Manufacturer: | RAB | Manufacturer Part Number: | HAZPLED26CF-DG |
| UPC: | 019813201207 | Lumens: | 2,503 Lumens |
| Lumens Per Watt: | 96.27 | Wattage: | 26 Watts |
| Input Voltage: | 120-277V | Input Watts: | 27 |
| Color Temperature: | 5000K | Mounting Type: | 3/4" NPT Pendant Mount |
| Color: | Gray | Rated Hours: | 100,000 Hours |
| Equivalent: | 70 Watts HID | Min Operating Temp: | -40 Degrees F |
| Special Features: | Wet Location Rated, IP66 Rated, Hazardous Location Class 1 - Division 2 | Warranty: | 5 Years |
