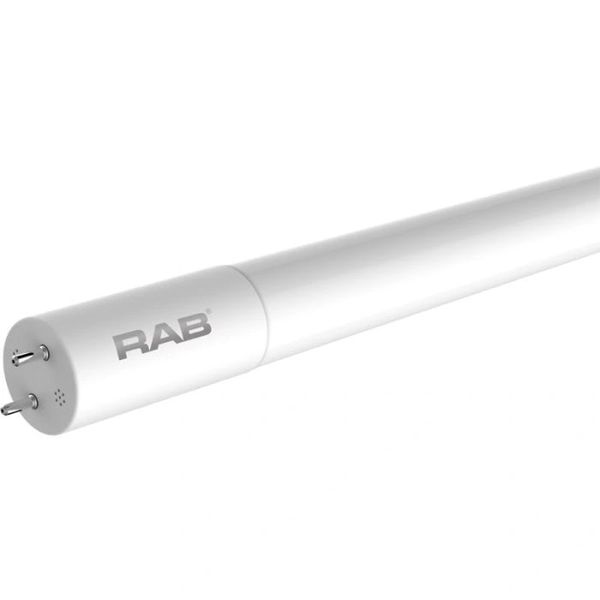

RAB 48" 17.5 Watt T8 LED - Ballast Bypass - Single End or Opposing End Wired - 3500K - 2,500 Lumens - 120-277V
$9.85
$9.85
ITEM #:90315
Replace your conventional T8/T12 fluorescent tubes with RAB's T8 LED ballast bypass lamp. These lamps can be wired either using single-ended or opposing-ended wiring method for maximum flexibility in the field, while being approximately 40% more energy efficient than standard T8 fluorescent tubes.
The T8-17.5-48G-835-SD-BYP is a 48" long, 17.5 watt LED tube lamp that provides 2,500 lumens of 3500K warm-neutral white light and the following features:
- Type B ballast bypass operation
- Capable of single or opposing-ended wiring for maximum in-field flexibility, and works on shunted or non-shunted sockets
- Internal driver eliminates the need for external ballasts or drivers
- Base: G13, medium bi-pin
- Equivalent to 32 watt fluorescent tubes
- Suitable for use in enclosed and open fixtures
- Damp location rated
- NSF rated
- Start up instantly, no flicker or hum like conventional fluorescent tubes
- Environmentally friendly, no mercury used and are easy to recycle
- DLC 5.1
- 50,000 hour rated
- 5 year warranty
Details | |||
---|---|---|---|
Manufacturer: | RAB | Manufacturer Part Number: | T8-17.5-48G-835-SD-BYP |
UPC: | 192552004909 | Lumens: | 2,500 Lumens |
Lumens Per Watt: | 142.86 | Wattage: | 18 Watts |
Input Voltage: | 120-277V | Color Temperature: | 3500K |
Base Type: | G13 | Rated Hours: | 50,000 Hours |
Beam Angle: | 180 Degrees | Equivalent: | 32 Watts Fluorescent |
Min Operating Temp: | -4 Degrees F | CRI: | 80+ |
Special Features: | Damp Location Rated, NSF Rated, Enclosed Fixture Rated | Warranty: | 5 Years |
