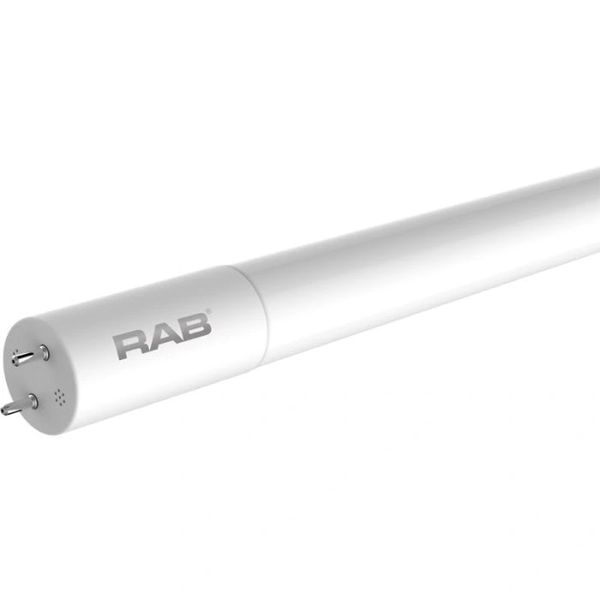

RAB 48" 17.5 Watt T8 LED - Ballast Bypass - Single End or Opposing End Wired - 5000K - 2,500 Lumens - 120-277V

$9.85 $9.85

ITEM #:90311

Replace your conventional T8/T12 fluorescent tubes with RAB's T8 LED ballast bypass lamp. These lamps can be wired either using single-ended or opposing-ended wiring method for maximum flexibility in the field, while being approximately 40% more energy efficient than standard T8 fluorescent tubes.

The T8-17.5-48G-850-SD-BYP is a 48" long, 17.5 watt LED tube lamp that provides 2,500 lumens of 5000K cool white light and the following features:

  • Type B ballast bypass operation
  • Capable of single or opposing-ended wiring for maximum in-field flexibility, and works on shunted or non-shunted sockets
  • Internal driver eliminates the need for external ballasts or drivers
  • Base: G13, medium bi-pin
  • Equivalent to 32 watt fluorescent tubes
  • Suitable for use in enclosed and open fixtures
  • Damp location rated
  • NSF rated
  • Start up instantly, no flicker or hum like conventional fluorescent tubes
  • Environmentally friendly, no mercury used and are easy to recycle
  • DLC 5.1
  • 50,000 hour rated
  • 5 year warranty
Details
Details
Manufacturer: RAB Manufacturer Part Number: T8-17.5-48G-850-SD-BYP
UPC: 192552004923 Lumens: 2,500 Lumens
Lumens Per Watt: 142.86 Wattage: 18 Watts
Input Voltage: 120-277V Color Temperature: 5000K
Base Type: G13 Rated Hours: 50,000 Hours
Beam Angle: 180 Degrees Equivalent: 32 Watts Fluorescent
Min Operating Temp: -4 Degrees F CRI: 80+
Special Features: Damp Location Rated, NSF Rated, Enclosed Fixture Rated Warranty: 5 Years
