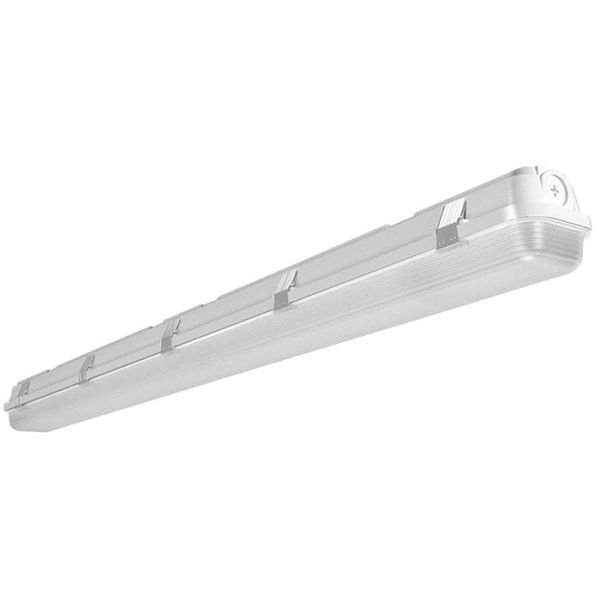

RAB 48" SEAL Linear LED Vapor Tight - 3K / 4K / 5K - 4,080 thru 6,800 Lumens - 120-277V
ITEM #:106258
The SEAL series of LED vapor tight fixtures by RAB are an excellent choice to provide long lasting, energy efficient LED illumination for your canopy, loading dock, tunnel, food preparation or any application that is exposed to the elements or requires constant washdown.
The SEAL series is designed with a durable polycarbonate housing and is IP66 rated for complete protection from dust and oil, and protection from powerful jets of water. It's also NSF rated, NEMA 4X rated, and UL 94-5VA classified for flammability control. Includes quick-mount stainless steel snap on brackets for surface mounting and V-hook brackets for suspension mounting.
This fixture is both wattage selectable and CCT-tunable, allowing the user to select between 3 different wattage/lumen output levels and 3 different white light color temperatures to find the right light output to suit the application. Being DLC Premium rated, these fixtures allow for even more savings when taking advantage of local energy utility rebates.
The SEAL4 is a wattage selectable 48" long LED vapor tight fixture that provides 4,080 through 6,800 lumens of CCT-tunable white light and the following features:
- 120-227V operation
- 0-10V dimmable
- Wattage selectable: choose between 30W / 4,080 lumens, 40W / 5,440 lumens, or 50W / 6,800 lumens
- CCT-tunable: choose between warm-neutral 35K, neutral 40K or cool 50K white light color temperatures
- Diffuse polycarbonate lens for low glare and maximum protection
- Includes quick-mount stainless steel snap on brackets for surface mounting and V-hook brackets for suspension mounting
- Wet location rated
- NSF rated
- 2kV surge protection
- NEMA 4x corrosion protection
- UL 94 5VA flame classification
- DLC Premium
- Operating temperature: -40º to 104º F
- 100,000 hour rated
- 5 year warranty
Details | |||
---|---|---|---|
Manufacturer: | RAB | Manufacturer Part Number: | SEAL4 |
UPC: | 192552023887 | Lumens: | 6,800 Lumens |
Lumens Per Watt: | 136 | Wattage: | 50 Watts |
Input Voltage: | 120-277V | Dimmable: | 0-10V |
Color Temperature: | CCT Tunable | Rated Hours: | 100,000 Hours |
Min Operating Temp: | -40 Degrees F | CRI: | 80+ |
Special Features: | CCT Tunable, Wattage / Lumen Selectable, Wet Location Rated, IP66 Rated | Warranty: | 5 Years |
