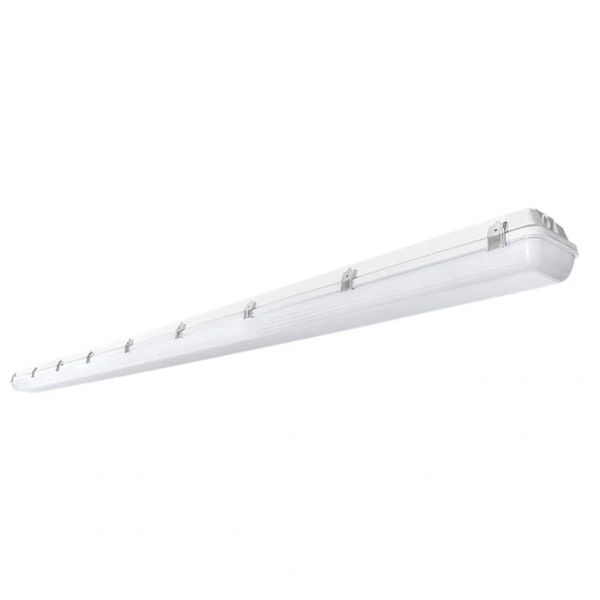

RAB 96" 100 Watt SEAL Linear LED Vapor Tight - 4000K - 11,436 Lumens - 120-277V
ITEM #:57116
The RAB 96" 100 watt SEAL linear LED washdown fixture is an economical but quality option for canopies, loading docks, tunnels, and other applications that are hard to reach or exposed to the elements. Designed for ease of accessibility and mounting with tethers that connect the housing to the LED board. Tether cables provided for easy installation. These fixtures are UL rated for wet locations, IP65 rated for protection against dust and water ingress and constructed of impact-resistant polycarbonate lenses with stainless steel door clips.
The SEAL8-100N/D10 provides 11,436 lumens of 4000K neutral white light and the following features:
- 120-277V operation
- 0-10V dimmable
- Suitable for wet locations
- IP65 rating protects against dust and water ingress
- High temperature silicone gaskets
- Diffuse polycarbonate lens for low glare and maximum protection
- Impact-resistant polycarbonate with stainless steel door clips
- 6' 5-wire cord installed on fixture for easy installation
- Tether cables are provided for easy installation, and quick connector may be used for quick and easy wiring
- 4kV surge protection
- Operating temperature: -4º to 104º F
- 50,000 hour rated
- DLC Standard
- 5 year warranty
Click here if you require a 100 watt 96" SEAL fixture that is Lightcloud enabled
Contact our lighting specialists for a quote or layout today!
| Details | |||
|---|---|---|---|
| Manufacturer: | RAB | DLC Product ID: | PU3S9J3O |
| Manufacturer Part Number: | SEAL8-100N/D10 | UPC: | 019813606255 |
| Lumens: | 11,436 Lumens | Lumens Per Watt: | 114.36 |
| Wattage: | 100 Watts | Input Voltage: | 120-277V |
| Dimmable: | 0-10V | Input Watts: | 97 |
| Color Temperature: | 4000K | Rated Hours: | 50,000 Hours |
| Min Operating Temp: | -20 Degrees F | CRI: | 80+ |
| Special Features: | Damp Location Rated, Wet Location Rated, NSF Rated, Surge Protection, IP66 Rated | Warranty: | 5 Years |
