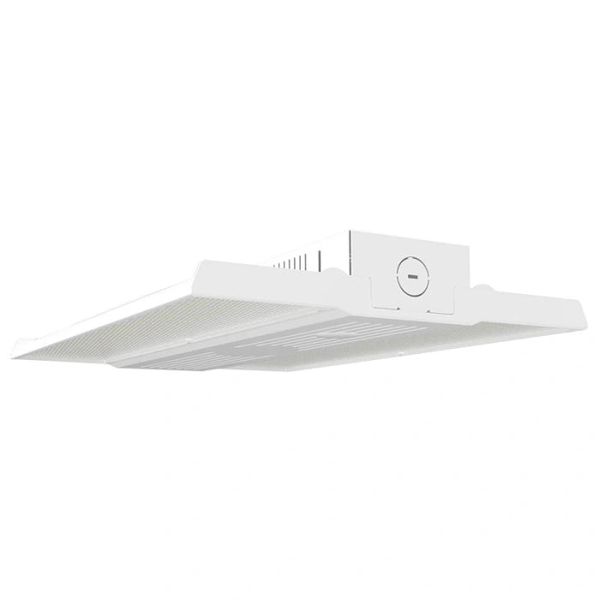

RAB Field Adjustable LED High Bay - 35K / 4K / 5K - 12,506 thru 19,432 Lumens - 120-277V

$143.00 $143.00

ITEM #:108466

The new RBAY series of field adjustable LED high bays are an excellent choice to provide your warehouse or other high-ceiling commercial lighting applications with long lasting, energy efficient LED illumination. This high bay is both wattage selectable and CCT-tunable, allowing the user to select between three different wattage/lumen output levels and three different white light color temperatures to find the right light output to suit the application. Being DLC Premium rated, these high bays allow for even more savings when taking advantage of local energy utility rebates.

The RBAY17S is an LED high bay that provides 12,506 through 19,432 lumens of CCT-tunable LED illumination and the following features:

  • 120-277V operation
  • 0-10V dimmable
  • CCT-tunable: choose between warm-neutral 35K, neutral 40K or cool 50K white light color temperature options
  • Wattage-selectable: choose between 80W / 12,506 lumens, 100W / 15,632 lumens or 130W / 19,432 lumens output options
  • Includes (2) V-hooks and (2) 3.28' mounting chains
  • DLC Premium
  • Equivalent to 750 watt HID fixtures
  • Damp location rated
  • Operating temperature: -4º to 122º F
  • 100,000 hour rated
  • 5 year warranty

Click Here to return to GenerationLEDs homepage. We have the RBAY17S LED high bay with an emergency battery backup driver installed

Manufacturer: RAB DLC Product ID: S-ZU7Y5J
Manufacturer Part Number: RBAY17S UPC: 192552025423
Lumens: 19,432 Lumens Wattage: 130 Watts
Input Voltage: 120-277V Dimmable: 0-10V
Color Temperature: CCT Tunable Rated Hours: 100,000 Hours
Equivalent: 400 Watts HID Min Operating Temp: -4 Degrees F
CRI: 80+ Special Features: CCT Tunable, Wattage / Lumen Selectable, Damp Location Rated
Warranty: 5 Years
