RAB H17 UFO LED High Bay - 3K / 4K / 5K - 15,000 thru 22,149 Lumens - 120-277V

$149.00 $149.00

ITEM #:93800

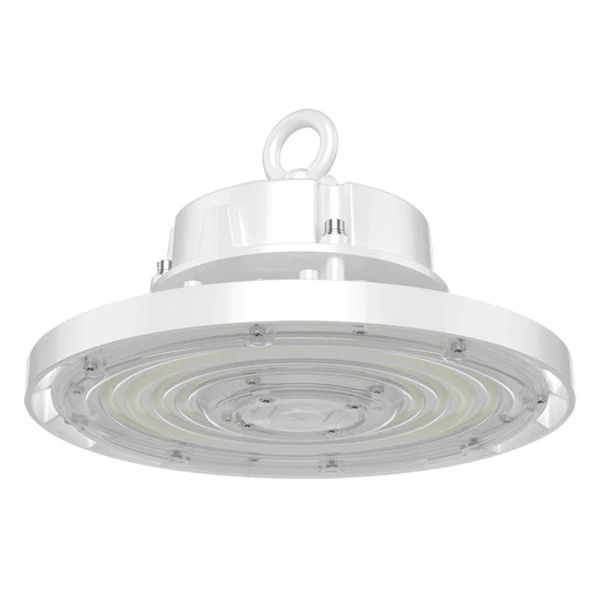

The H17 round LED high bay by RAB lighting is an excellent choice to provide your warehouse, gymnasium or other high ceiling lighting application with long lasting, energy efficient LED illumination. They are both wattage selectable and CCT-tunable, allowing for the installer or end user to choose between either 100W, 125W or 150W wattage levels as well as neutral 4000K or cool 5000K white light color temperatures to suit the application via a switch beneath the waterproof gasket. These high bays include an expansion port that makes it easy to add a PIR or microwave sensor (which can be configured to adjust brightness and hold time). Each H17 comes standard with a hanging hook and a 4' cord but kits are also available for both surface and pendant mounting.

The H17XL is a round LED high bay that provides 23,360 through 34,358 lumens of CCT-tunable white light color temperatures and the following features:

  • 120-277V operation
  • 0-10V dimmable
  • CCT-tunable: choose between warm 30K, neutral 40K or cool 50K white light color temperatures
  • Wattage selectable: choose between 100W / 15,000 lumens, 125W / 18,457 lumens or 150W / 22,149 lumens
  • Optional sensors, mounts and protective reflectors / wire guards available
  • 6kV surge protection
  • IP65 wet location rated
  • Heavy-duty 3/4" NPS hook and 3/4" pendant mount capable
  • Precision die-cast aluminum housing and polycarbonate lens
  • Operating temperature: -40º to 122º F
  • 100,00 hour rated
  • 5 year warranty

IES files for the H17 UFO LED High Bay:

Manufacturer: RAB Manufacturer Part Number: H17
UPC: 192552022026 Lumens: 22,149 Lumens
Lumens Per Watt: 147.66 Wattage: 150 Watts
Input Voltage: 120-277V Dimmable: 0-10V
Color Temperature: CCT Tunable Color: White
Rated Hours: 100,000 Hours Min Operating Temp: -40 Degrees F
CRI: 80+ Special Features: CCT Tunable, Wattage / Lumen Selectable, Wet Location Rated, Surge Protection, IP65 Rated
Warranty: 5 Years
