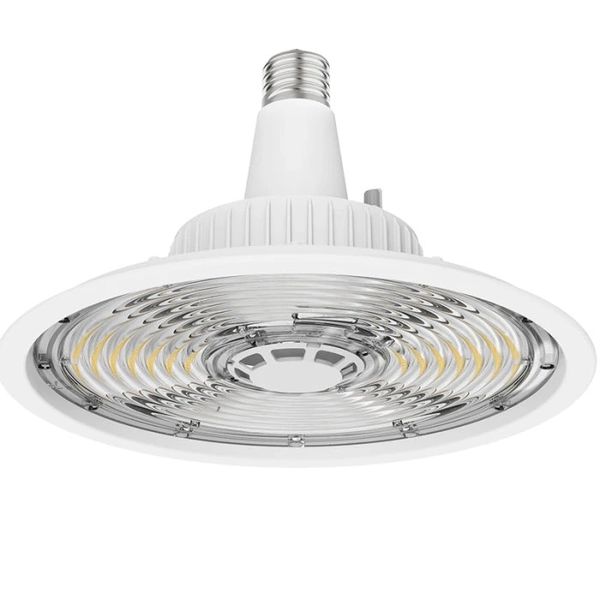

RAB HID LED High Bay Retrofit Lamp - EX39 Base - 3K / 4K / 5K - 1,300 thru 20,000 Lumens - 120-277V
ITEM #:106256
The HID LED high bay retrofit lamp from RAB is an excellent choice to upgrade your outdated HID high bays to long lasting, energy efficient LED illumination. This retrofit lamp is ballast bypass and operates directly off of 120-277V line voltage, and is both wattage selectable and CCT-tunable- allowing the user to select 1,300 through 20,000 lumen output levels and 3 different white light color temperatures to find the right light output to suit the application. They can replace 400 through 600 watt HID high bays, minimizing energy usage to just 8.8-135 watts with this retrofit lamp.
The HIDFA-135S-V-EX39-8CCT-BYP is an LED high bay retrofit lamp with a mogul EX39 base that provides 1,300 through 20,000 lumens of CCT-tunable white light color temperatures and the following features:
- 120-277V ballast-bypass operation
- Wattage selectable: select any lumen output between 1,300 and 20,000 lumens using the dial on the back of the lamp
- CCT-tunable: choose between warm 30K, neutral 40K or cool 50K white light color temperatures using switch on the back of the lamp
- Stepless dimming by rotating switch on fixture
- Mogul EX39 base
- Integrated heat sink that dissipates heat quickly without the need for an on-board fan
- Rated for use in enclosed fixtures
- Damp location rated
- 4kV surge protection
- DLC 5.1
- Operating temperature: -22º to 122º F
- 50,000 hour rated
- 5 year warranty
Details | |||
---|---|---|---|
Manufacturer: | RAB | DLC Product ID: | PLV4B3FLLDON |
Manufacturer Part Number: | HIDFA-135S-V-EX39-8CCT-BYP | UPC: | 192552014625 |
Lumens: | 20,000 Lumens | Lumens Per Watt: | 148.15 |
Wattage: | 135 Watts | Input Voltage: | 120-277V |
Color Temperature: | CCT Tunable | Base Type: | EX39 Mogul |
Rated Hours: | 50,000 Hours | Equivalent: | 400 Watts HID |
Min Operating Temp: | -22 Degrees F | CRI: | 80+ |
Special Features: | CCT Tunable, Wattage / Lumen Selectable, Damp Location Rated, Enclosed Fixture Rated, Surge Protection | Warranty: | 5 Years |
