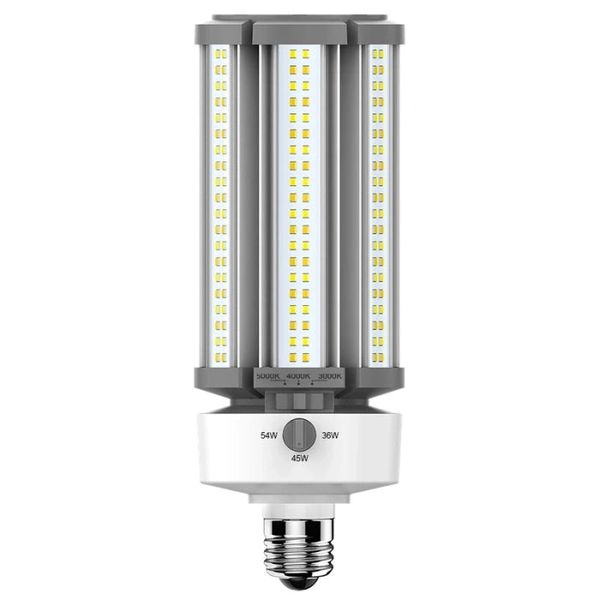

RAB HID LED Retrofit Lamp - E26 Base - 3K / 4K / 5K - 5,220 thru 7,830 Lumens - 120-277V

$72.72 $72.72

ITEM #:90013

The new RAB wattage adjustable and CCT-tunable HID LED lamps are an excellent choice to provide long-lasting, energy efficient LED illumination for your post-top or bollard retrofit application. Each lamp allows for easily selection of various wattage / lumen levels as well as white light color temperatures via the knobs on the base of the lamp, allowing the installer or end user to find the light output and type best suits the application. Each lamp also have an auxiliary port on the top for integration of individual controls such as microwave or passive infrared sensors (sold separately - see ‘frequently bought together’ products). Automated thermal management technology protects the lamp by reducing its output to 70% if they exceed 110º F, and by 50% if they exceed 120º.

The HIDFA-54S-E26-8CCT-BYP/3SP is a wattage adjustable HID LED retrofit lamp with a medium E26 base that provides 5,220 through 7,830 lumens of CCT-tunable white light and the following features:

  • 120-277V operation
  • E26 base
  • Wattage adjustable: select between 36W / 5,220 lumens, 45W / 6,525 lumens, or 54W / 7,830 lumens
  • CCT-tunable: select between warm 3000K, neutral 4000K, or cool 5000K white light color temperature options
  • Includes on-board low-voltage AUX ports for lamp-level sensor installation
  • Equivalent to 150W/175W/200W metal halide or high pressure sodium lamps
  • Suitable for vertical or horizontal installation
  • Rated for use in enclosed fixtures
  • Damp location rated
  • Integrated 4kV integrated surge protection
  • Operating temperature: -22º to 140º F
  • 50,000 hour rated
  • 5 year warranty
Details
Details
Manufacturer: RAB DLC Product ID: H10052
Manufacturer Part Number: HIDFA-54S-E26-8CCT-BYP/3SP UPC: 192552006217
Lumens: 7,830 Lumens Lumens Per Watt: 145
Wattage: 54 Watts Input Voltage: 120-277V
Color Temperature: CCT Tunable Base Type: E26 Medium
Lamp Shape: Corn Cob Rated Hours: 50,000 Hours
Equivalent: 200 Watts HID Min Operating Temp: -22 Degrees F
CRI: 80+ Special Features: CCT Tunable, Wattage / Lumen Selectable, Damp Location Rated, Enclosed Fixture Rated, Surge Protection, Universal Installation Orientation
Warranty: 5 Years
