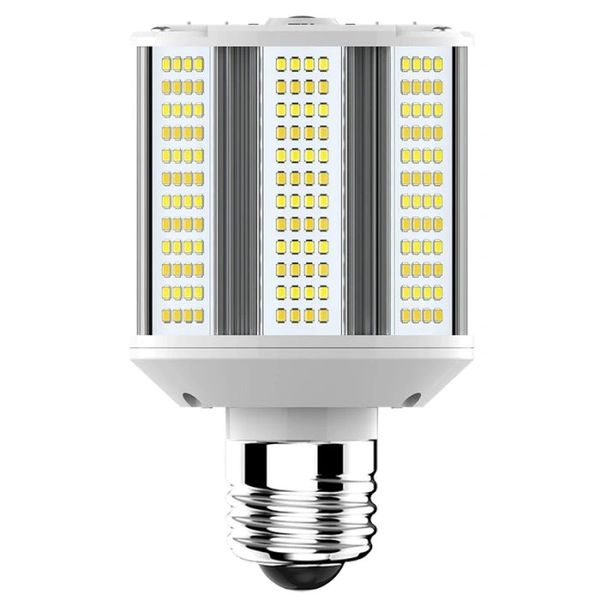

RAB HID LED Retrofit Lamp - E26 Base - 3K / 4K / 5K - 800 thru 3,200 Lumens - 120-277V
$68.16
$68.16
ITEM #:90352
Replace your existing 100 watt HID lamp in your wall pack with the RAB LED wall pack lamp. This retrofit provides a simple alternative to a full fixture replacement. Being both wattage selectable and CCT-tunable, this lamp allows for the user to easily select between 3 different wattage/lumen light output levels as well as three white light color temperatures to best suit their preference or application. This lamp uses 76% less energy than the old metal halide lamps.
The HIDFA-20S-H-E26-8CCT-BYP is a wattage selectable HID LED wall pack retrofit lamp with an E26 medium base that provides 800 through 3,200 lumens of CCT-tunable white light and the following features:
- 120-277V ballast bypass (Type B) operation
- E26 medium base
- Wattage selectable: choose between 5W / 800 lumen, 10W / 1,600 lumen or 20W / 3,200 lumen light output options
- CCT-tunable: choose between warm 30K, neutral 40K or cool 50K white light color temperatures
- Integral driver, eliminates the need for an external driver or ballast
- Active cooling technology extends life of lamp
- Includes 4kV surge protection
- Enclosed fixture rated
- Damp location rated
- IP64 rated
- Operating temperature: -22º to 140º F
- 50,000 hour rated
- 5 year warranty
| Details | |||
|---|---|---|---|
| Manufacturer: | RAB | Manufacturer Part Number: | HIDFA-20S-H-E26-8CCT-BYP |
| UPC: | 192552005104 | Lumens: | 3,200 Lumens |
| Lumens Per Watt: | 160 | Wattage: | 20 Watts |
| Input Voltage: | 120-277V | Color Temperature: | CCT Tunable |
| Base Type: | E26 Medium | Lamp Shape: | Corn Cob |
| Rated Hours: | 50,000 Hours | Equivalent: | 100 Watts HID |
| Min Operating Temp: | -22 Degrees F | CRI: | 80+ |
| Special Features: | CCT Tunable, Wattage / Lumen Selectable, Damp Location Rated, Enclosed Fixture Rated, Surge Protection, IP64 Rated | Warranty: | 5 Years |
