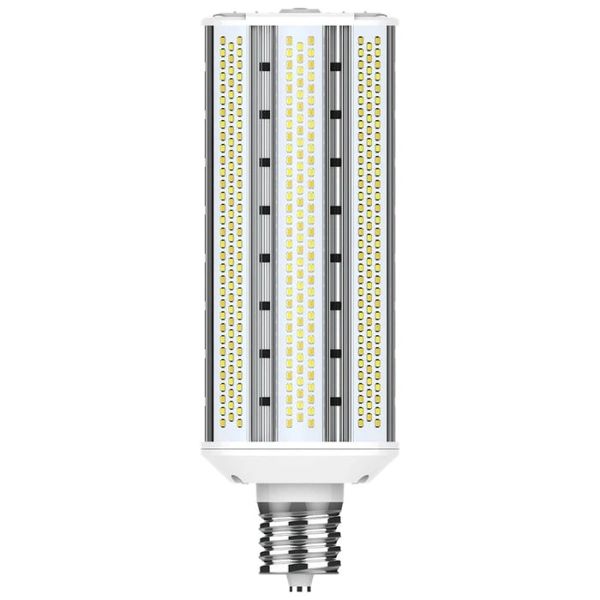

RAB HID LED Retrofit Lamp - EX39 Base - 3K / 4K / 5K - 3,200 thru 9,600 Lumens - 120-277V
ITEM #:90349
Replace your existing 250 watt HID lamp in your wall pack with the RAB LED wall pack lamp. This retrofit provides a simple alternative to a full fixture replacement. Being both wattage selectable and CCT-tunable, this lamp allows for the user to easily select between 3 different wattage/lumen light output levels as well as three white light color temperatures to best suit their preference or application. This lamp uses 76% less energy than the old metal halide lamps.
The HIDFA-60S-H-EX39-8CCT-BYP is a wattage selectable HID LED wall pack retrofit lamp with an EX39 mogul base that provides 3,200 through 9,600 lumens of CCT-tunable white light and the following features:
- 120-277V ballast bypass (Type B) operation
- EX39 mogul base
- Wattage selectable: choose between 20W / 3,200 lumen, 40W / 6,400 lumen or 60W / 9,600 lumen light output options
- CCT-tunable: choose between warm 30K, neutral 40K or cool 50K white light color temperatures
- Integral driver, eliminates the need for an external driver or ballast
- Active cooling technology extends life of lamp
- Includes 4kV surge protection
- Enclosed fixture rated
- Damp location rated
- IP64 rated
- DLC Standard
- Operating temperature: -22º to 140º F
- 50,000 hour rated
- 5 year warranty
Details | |||
---|---|---|---|
Manufacturer: | RAB | DLC Product ID: | PW8HEGK8 |
Manufacturer Part Number: | HIDFA-60S-H-EX39-8CCT-BYP | UPC: | 192552005142 |
Lumens: | 9,600 Lumens | Lumens Per Watt: | 160 |
Wattage: | 60 Watts | Input Voltage: | 120-277V |
Color Temperature: | CCT Tunable | Base Type: | EX39 Mogul |
Lamp Shape: | Corn Cob | Rated Hours: | 50,000 Hours |
Equivalent: | 250 Watts HID | Min Operating Temp: | -22 Degrees F |
CRI: | 80+ | Special Features: | CCT Tunable, Wattage / Lumen Selectable, Damp Location Rated, Enclosed Fixture Rated, Surge Protection, IP64 Rated |
Warranty: | 5 Years |
