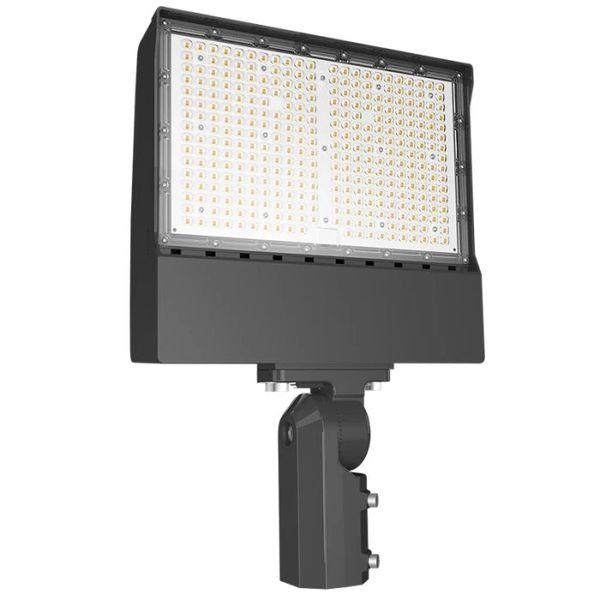

RAB X17 LED Flood Light - Slipfitter Mount - Photocell- 3K / 4K / 5K - 13,394 thru 30,618 Lumens - 120-277V - Bronze
ITEM #:89730
The RAB X17 series of LED flood lights are an ultra-economy series of fixtures that provide powerful yet efficient LED illumination to your large area exterior application. Each X17 flood light is CCT-tunable, allowing the user to switch between warm 30K, neutral 40K or daylight 50K white light color temperature options in a wide 7H x 6V NEMA light distribution. These wattage selectable models also allow for a quick selection between 100, 150, or 205 watt options with varying lumen outputs. Each fixture also includes an integrated twistlock photocell for even more energy savings. These features combined with the variety of mount, wattage, and color options make the X17's a versatile LED flood light series that won't break your budget.
The X17XFU205SF/PCT is a wattage selectable LED flood light with a slipfitter mount and integrated twistlock photocell in a bronze finish that provides 13,394 through 30,618 lumens of CCT-tunable white light and the following features:
- 120-277V operation
- 0-10V dimmable
- Slipfitter mount
- CCT-tunable: choose between warm 30K, neutral 40K or daylight 50K white light color temperatures
- Wattage / lumen selectable: choose between 100W / 13,394 lumens, 150W / 20,091 lumens, or 205W / 30,618 lumens
- Integrated 120-277V twistlock photocell that can be turned on or off
- IP65 wet location rated
- 7H x 6V NEMA wide distribution
- Precision die-cast aluminum body
- Tempered glass lens and polycarbonate reflector
- DLC Premium
- Operating temperature: -40º to 104º F
- 100,000 hour rated
- 5 year warranty
Details | |||
---|---|---|---|
Manufacturer: | RAB | DLC Product ID: | P1V0FAUY |
Manufacturer Part Number: | X17XFU205SF/PCT | UPC: | 192552015110 |
Lumens: | 30,618 Lumens | Lumens Per Watt: | 149.36 |
Wattage: | 205 Watts | Input Voltage: | 120-277V |
Dimmable: | 0-10V | Color Temperature: | CCT Tunable |
Color: | Bronze | Rated Hours: | 100,000 Hours |
Beam Angle: | NEMA 7H x 6V Wide | Min Operating Temp: | -40 Degrees F |
CRI: | 80+ | Special Features: | CCT Tunable, Wattage / Lumen Selectable, Photocell Installed, IP65 Rated |
Warranty: | 5 Years |
