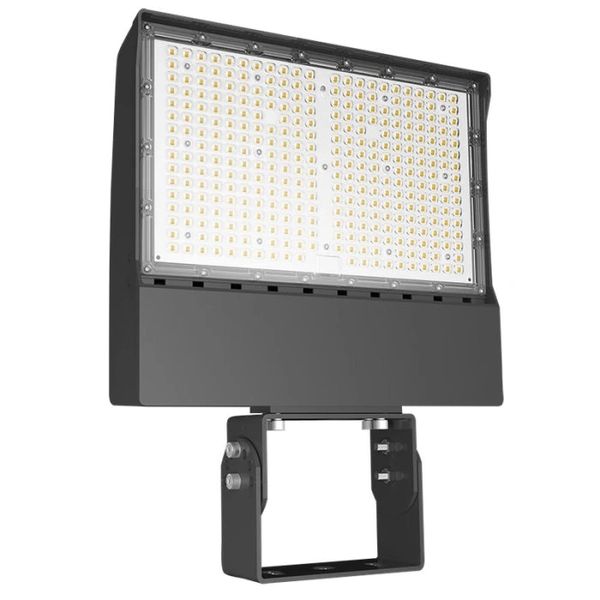

RAB X17 LED Flood Light - Trunnion Mount - Photocell- 3K / 4K / 5K - 13,394 thru 30,618 Lumens - 120-277V - Bronze

$536.00 $536.00

ITEM #:89728

The RAB X17 series of LED flood lights are an ultra-economy series of fixtures that provide powerful yet efficient LED illumination to your large area exterior application. Each X17 flood light is CCT-tunable, allowing the user to switch between warm 30K, neutral 40K or daylight 50K white light color temperature options in a wide 7H x 6V NEMA light distribution. These wattage selectable models also allow for a quick selection between 100, 150, or 205 watt options with varying lumen outputs. Each fixture also includes an integrated twistlock photocell for even more energy savings. These features combined with the variety of mount, wattage, and color options make the X17's a versatile LED flood light series that won't break your budget.

The X17XFU205T/PCT is a wattage selectable LED flood light with a trunnion mount and integrated twistlock photocell in a bronze finish that provides 13,394 through 30,618 lumens of CCT-tunable white light and the following features:

  • 120-277V operation
  • 0-10V dimmable
  • Trunnion mount
  • CCT-tunable: choose between warm 30K, neutral 40K or daylight 50K white light color temperatures
  • Wattage / lumen selectable: choose between 100W / 13,394 lumens, 150W / 20,091 lumens, or 205W / 30,618 lumens
  • Integrated 120-277V twistlock photocell that can be turned on or off
  • IP65 wet location rated
  • 7H x 6V NEMA wide distribution
  • Precision die-cast aluminum body
  • Tempered glass lens and polycarbonate reflector
  • DLC Premium
  • Operating temperature: -40º to 104º F
  • 100,000 hour rated
  • 5 year warranty
Details
Details
Manufacturer: RAB DLC Product ID: P1V0FAUY
Manufacturer Part Number: X17XFU205T/PCT UPC: 192552015127
Lumens: 30,618 Lumens Lumens Per Watt: 149.36
Wattage: 205 Watts Input Voltage: 120-277V
Dimmable: 0-10V Color Temperature: CCT Tunable
Color: Bronze Rated Hours: 100,000 Hours
Beam Angle: NEMA 7H x 6V Wide Min Operating Temp: -40 Degrees F
CRI: 80+ Special Features: CCT Tunable, Wattage / Lumen Selectable, Photocell Installed, IP65 Rated
Warranty: 5 Years
