RIB Functional Devices Enclosed Mechanically Latching Relay - Multi-Amp - SPST - 12VAC/DC Coil - True Override Switch + Status LED + Auxilliary Output

The Functional Devices latching relays come prepackaged in their own NEMA 1 plastic enclosure with a 1/2" mounting stem, LED indicator and are pre-wired to help save you time and money during installation. These relays are activated from a controller via pulse commands. Relay contacts are mechanically latched in the closed position allowing the load to remain on in the event of a control panel failure. If power is completely lost, the contacts will remain in their last state allowing for re-activation of load upon return to normal or emergency power

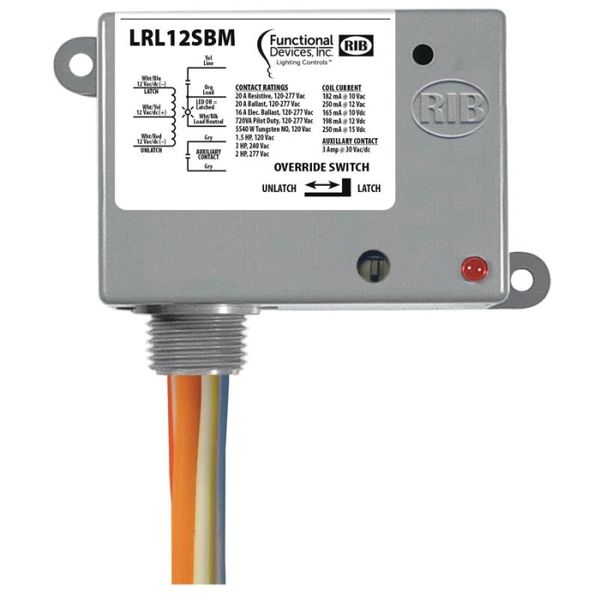

The LRL12SBM is an enclosed mechanically latching multi-amp relay (20 amp/ 15 amp/ 10 amp/ 5 amp/ 4 amp/ 1 amp - SPST) with a 12VAC/DC coil and true override switch, LED status light and auxiliary output

Made in U.S.A.
