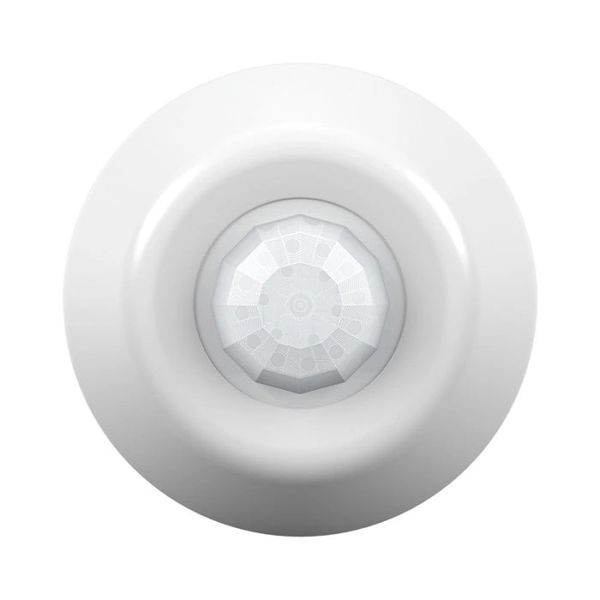

SensorWorx Ceiling Mount Sensor - Photocell - 0-10V Dimming - Daylight Harvesting - Battery Powered

SensorWorx photocell sensors control lighting according to measured ambient lighting in a space. Basic on/off units signal a connected power pack to turn lights off when ambient levels are high enough that desired overall light levels are maintained.

During times of high daylight contribution to a space, controlled artificial lighting will be gradually dimmed to a minimum dimmed level. During times of no or low daylight contribution, controlled artificial lighting will increase back up to its maximum level. The sensor can also be configured to signal a connected power pack to switch lighting off completely in maintained high daylight conditions. Additional configurable parameters include high and low trim levels and fade rates.

All photocells provide the option of selecting the ambient light threshold (e.g., set point) from a range of preset values or running an auto-selection mode where the unit will determine the set point based on the measured amount of light it is controlling.

Battery powered operation: preferred by contractors for their flexible mounting methods, wireless sensors greatly reduce total installation time and wireless pairing fuss. This wireless sensor can be linked to one or more wireless load controllers (such as the SWX-851 wireless wall switch, or a SWX-950 series wireless power pack). Additionally, these units provide an auto-setpoint selection mode that assists with choosing the controlled light level for a space. With a 10 year battery life design for PIR only models. For PIR units with enabled integrated photocells, expected battery life is 7 years. For dual technology units with acoustic detection enabled, expected battery life is 5 years. If the sensor’s battery life reaches 10%, all wirelessly linked load controllers will blink lights on/off/on upon initial occupancy as a replacement warning. Replacement batteries are available at most retailers or home centers where batteries are sold or from.

Features Include:

• Auto-setpoint selection mode
• Adjustable high and low dimming trim level
• Works together with low-voltage occupancy sensors
• Compact size and matte finish
• Four contractor friendly mounting methods
• Mounting stem attachment with integrated hole saw

SensorWorx is committed to 100% USA based manufacturing
