SensorWorx Ceiling Occupancy Sensor - PIR + Daylight Detection - 360º / Large Motion - 120-277V

SensorWorx line voltage ceiling mount occupancy sensors provides a compact control solution capable of switching lighting loads without requiring a power pack. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance.

PIR + daylight detection: sensors on this model detect large movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor signals a connected power/relay pack to switch on the connected lighting. Additionally, this model comes with daylight detection that will turn off controlled lighting whenever there is sufficient ambient light in the space.

Line voltage sensors are self-contained units that directly power from and switch 120/277 VAC. Typically they are used to control areas where a single sensor’s coverage area is sufficient for the entire space.

Features Include:

• Digital passive infrared (PIR) detection
• Ambient Light Override (Photocell)

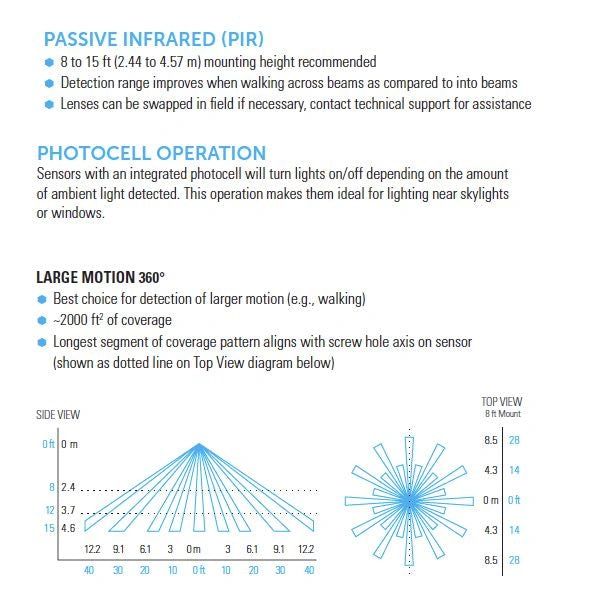

• 360° coverage pattern
• Field changeable lens
• Compact size and matte finish
• Convenient test mode and adjustable time delays
• Electronically timed switching designed for LED fixture control

SensorWorx is committed to 100% USA based manufacturing

Need help deciding what switches or sensors work best for your application? Refer to Sensorworx's handy application guides:

• Click Here to return to GenerationLEDs homepage. We have the 2015 IECC application guide
• Click Here to return to GenerationLEDs homepage. We have the 2018 IECC application guide
