SensorWorx Interval Timer Switch - 1 / 2 / 4 / 8 / 12 Hour Increments - 120-277V - Light Almond

The SensorWorx interval timer switches provide an automatic lighting control solution that is intuitive to operate. Designed with contractors in mind, the unit is significantly shallower than typical timers, resulting in less crowded wall boxes. Additionally, versatile wiring enables usage with or without a neutral connection. For interval adjustment, raise and lower buttons are present in addition to the on/off button. Five vertically stacked LEDs are provided to indicate the timer setting / time remaining. Configurable parameters include Maximum Time Setting, Blink Timeout Warning, Turn on Timer Levels, and LED Indication. This stylish unit also matches the SensorWorx family of wall switch occupancy sensors and 0-10V dimming wall switch sensors.

This model is a 12 hour timer, allowing for timing in 1, 2, 4, 8 or 12 hour increments

Electrical Features:

• Accommodates neutral (3-wire) and no-neutral (2-wire) installation
• Electronically timed switching ensures long relay life
• Meets NEC 404.2(c) and 404.22 guidelines regarding powering over ground and current leakage

Physical Features:

• Enclosure is 25-40% shallower than other timers (less than 1” depth into wallbox)
• Self-grounding mounting strap
• Modern look and intuitive easy-tap buttons for On/Off, Increase Time, and Decrease Time
• Settings are adjustable without removing cover plate

Operational Features:

• 5 LED time level indicators
• Configurable parameters including maximum time, turn on timer Setting, and blink warnings
• Blue locator LED when lights are off

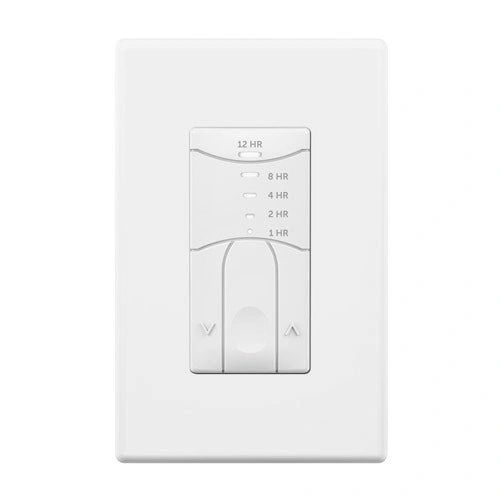

NOTE: above picture shows a white model dimmer, while this particular model comes in a light almond finish

Wall plates sold separately

SensorWorx is committed to 100% USA based manufacturing
