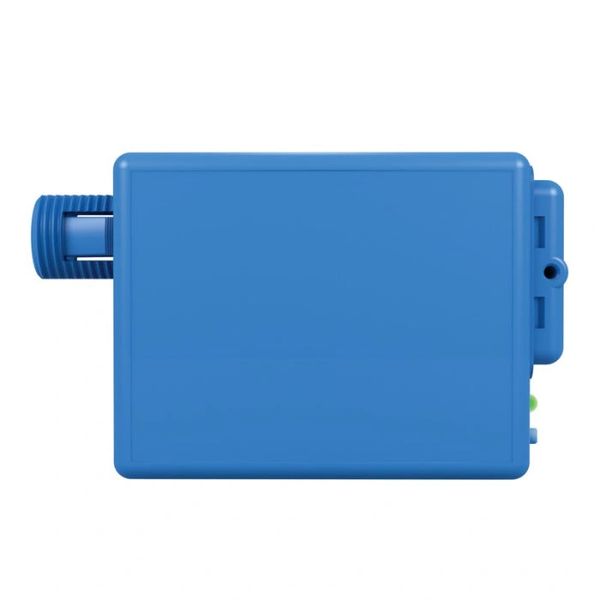

SensorWorx Power Pack - Single Relay + 150 mA Supply - Auxiliary Switch Input - 0-10V Dimming - 120-277V

SensorWorx power pack controllers transform incoming line voltage power to Class 2 low voltage as needed by sensors or other control devices. Additionally, they switch on/off power to the connected lighting load as directed by the sensors and controls. SensorWorx power packs utilize a powerful microprocessor to optimize its switching timing in order to ensure long relay life even when controlling high-inrush LEDs and ballast loads. As with all SensorWorx products, these power packs are easy to install and incorporate features which reduce contractor labor time. An elongated chase stem with snaps for quick installation and an optional snap-on low voltage wire chamber make for a hassle free contractor experience. All SensorWorx products are proudly made in the USA.

An input signal indicating occupancy from one or more connected sensors will signal the pack’s integrated relay to close. Once closed, line voltage will flow through the relay and turn on the connected lighting load. When the input signal indicates the occupied period has ended, the relay will open and lighting will switch off. This pack is also available with an auxiliary switch input to enable manual on, hold on, and hold off configurations. Partial off (e.g. auto off to 50%) and partial on (e.g., auto on to 50%) operation can also be achieved using the optional 0-10V stepped dimming output.

Power Pack Features

• Powers low voltage sensors
• Switches line voltage loads
• Electronically timed switching ensures long relay life
• Integrated test/programming button
• Plenum rated (UL 2043)
• Optional snap-on attachment provides chamber for low voltage wire connections
• Optional switch input for manual on, hold on, or hold off operation
• Optional snap-on attachment provides chamber for low voltage wire connections (sold separately)

NOTE: SWX-900-AX-D2 is not compatible with SWX-803 series dimmers

Need help deciding what switches or sensors work best for your application? Refer to Sensorworx's handy application guides:

• Click Here to return to GenerationLEDs homepage. We have the 2015 IECC application guide
• Click Here to return to GenerationLEDs homepage. We have the 2018 IECC application guide

SensorWorx is committed to 100% USA based manufacturing
