SensorWorx Wall Switch - 0-10V Dimming - 120-277V - Gray

The SensorWorx line voltage 0-10 volt dimmer switcches provide a stylish solution for spaces where manual dimming control is required. Designed with contractors in mind, the unit is significantly shallower than typical dimmers, resulting in less crowded wall boxes. Additionally, versatile wiring enables usage with or without a neutral connection. For dimming adjustment, intuitive raise and lower buttons are present in addition to the on/off button. Five vertically stacked LEDs are provided to indicate the current dimming level. Configurable dimming parameters include High/Low Trims, Turn on Levels, and Curve Types. This dimmer also matches the SensorWorx family of wall switch occupancy sensors and 0-10V dimming wall switch sensors.

Electrical Features:

• Accommodates neutral (3-wire) and no-neutral (2-wire) installation
• Electronically timed switching ensures long relay life
• Works both standalone and with 3-way switches
• Meets NEC 404.2(c) and 404.22 guidelines regarding powering over ground and current leakage

Physical Features:

• Enclosure is 25-40% shallower than other dimmers (less than 1” depth into wallbox)
• Self-grounding mounting strap
• Modern look and intuitive easy-tap buttons for on/off, raise, and lower
• Settings are adjustable without removing cover plate

Operational Features:

• 5 LED dimming level indication
• Configurable dimming parameters including high/low trims, turn on levels, and curve type
• Blue locator LED when lights are offline

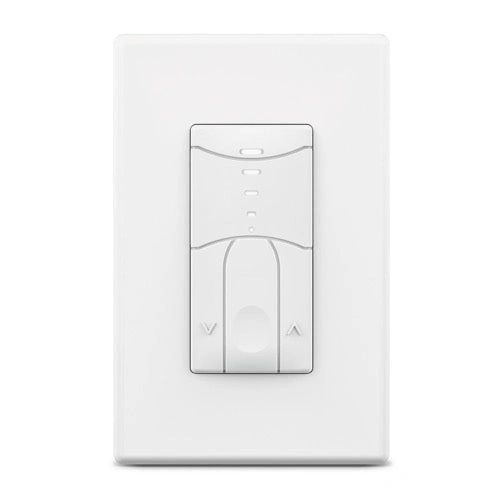

NOTE: above picture shows a white model dimmer, while this particular model comes in a gray finish

Wall plates sold separately

SensorWorx is committed to 100% USA based manufacturing
