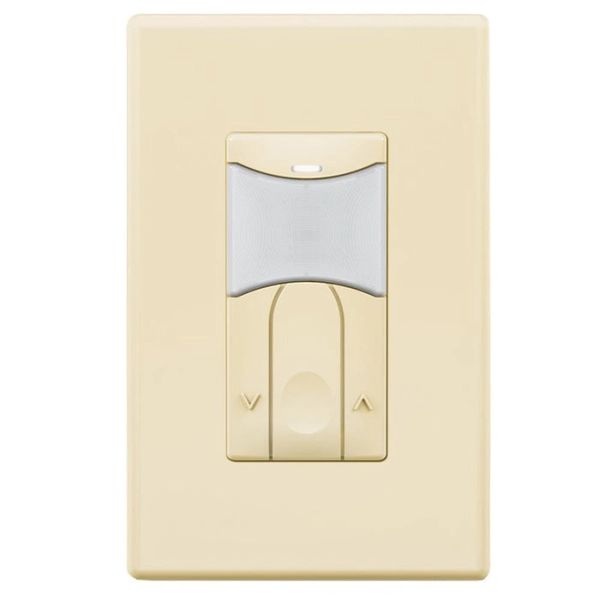

SensorWorx Wall Switch Sensor - Dual Tech + Daylight Detection - Auto On - 0-10V Dimming - Stand-Alone - 12-24V - Light Almond

The SensorWorx family of wall switch occupancy/vacancy sensors provides a simple and cost effective lighting control solution for many applications. Just like its line voltage counterpart, the low voltage SensorWorx 0-10V dimming wall switch sensor is designed with contractors in mind. Less than 1” deep, the unit is 25-40% shallower than typical dimmers and sensors, resulting in less crowded wall boxes. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched motion detection performance.

Dual tech + daylight detection:: passive infrared sensors detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor’s internal relay switches power on to the connected lighting. These units are also equipped with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion is limited. Ambient daylight detection also ensures lights are held off in rooms with sufficient light contribution from windows or skylights.

Automatic On and Automatic Off operation: If lights are switched off manually, the Automatic On functionality is temporarily disabled to allow the occupant a few seconds to leave the room before returning to Automatic On operation. However, if the person remains in the space, the unit will stay in a manual on state until the switch is pressed again.

Low-voltage 12-24V operation and 0-10V dimming control: when coupled with auxiliary power packs (see ‘frequently bought together’ products), these dimming sensor switches can dim as many fixtures as desired as each power pack can handle a load of 16 amps each.

Physical Features:

• Enclosure is 25-40% shallower than other sensors (less than 1” depth into wallbox)
• Unique bat-wing shaped lens provides enhanced peripheral detection
• Self-grounding mounting strap
• Modern look and intuitive easy-tap button
• Rugged vandal resistant lens
• Settings are adjustable without removing cover plate

Operational Features:

• Wall-to-wall passive infrared small motion detection
• Small motion (e.g., hand movement) detection up to 20 ft (6.10 m), ~625 ft²
• Large motion (e.g., walking) detection greater than 36 ft (10.97 m), ~ 2025 ft²
• 100% passive detection methods – no interference potential from external devices
• Configurable time delays and operating modes
• Blue locator LED when lights are off

Wall plates sold separately

SensorWorx is committed to 100% USA based manufacturing
