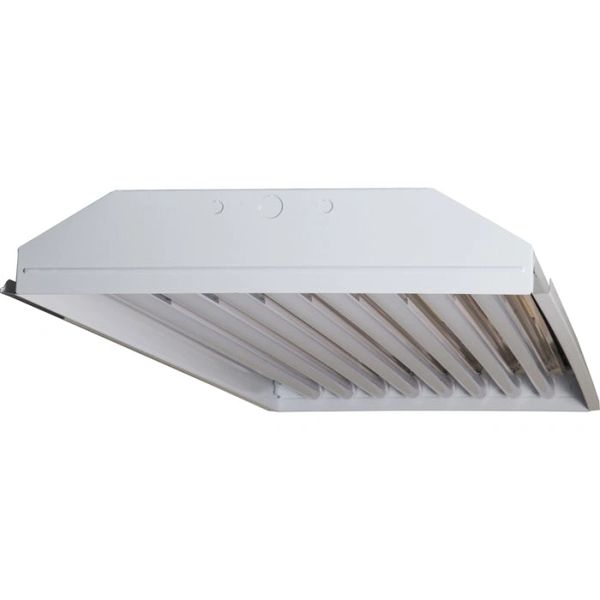

TechBrite 48" 8 Lamp T8 LED High Bay - 4000K - 20,000 Lumens - 120-277V

This TechBrite LED ready T8 high bay fixture comes pre-loaded with (8) Keystone 18 watt 4000K T8 LED lamps rated for 2,500 lumens each. The fixture is built without a ballast and with non-shunted sockets. Sockets on one end of the fixture are pre-wired to a WAGO disconnect for quick hook-up. When LEDs fail, simply install new T8 LED lamps.

Fixture Features:

• 48" long / 20" wide body
• Non-shunted sockets installed
• Miro4 aluminum reflector
• Made in the U.S.A.
• 1 year warranty

Lamp Features:

• 120-277V operation
• 4000K neutral white light
• 18.5 watts and 2,500 lumens each
• Type-B ballast bypass: integral driver eliminates need for external driver
• Single-ended wiring method works on non-shunted sockets
• Base: G13 medium bi-pin
• Suitable for use in enclosed and open fixtures
• Frosted lens eliminates pixelation
• Start up instantly, no flicker or hum like conventional fluorescent tubes
• Improved lamp durability with shatterproof coated glass
• Environmentally friendly, no mercury used and are easy to recycle
• Complies with NSF standards
• DLC Standard
• Operating temperature: -4º to 113º F
• 50,000 hour LED lifetime
• 5 year limited warranty

Click Here to return to GenerationLEDs homepage. We have lamp spec sheet

LED lamps are DLC Listed. Fixture is not DLC Listed.

Contact our lighting specialists for a quote or layout today!
