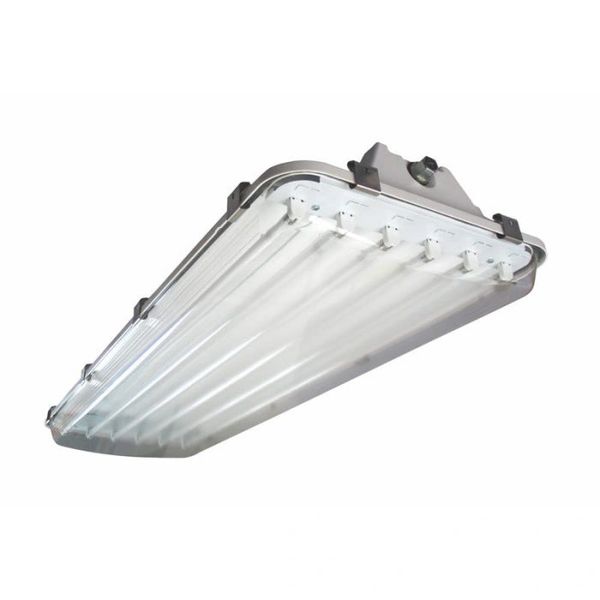

TechBrite 52" 6 Lamp LED T8 Vapor Tight - 4000K - 15,000 Lumens - 120-277V

$337.00 $337.00

ITEM #:34939

This TechBrite LED ready T8 vapor tight high bay fixture comes pre-loaded with (6) Keystone 18 watt T8 LED lamps rated for 2,500 lumens each. The fixture is built without a ballast and with non-shunted sockets. Sockets on one end of the fixture are pre-wired to a WAGO disconnect for quick hook-up.

Fixture Features
  • Features a fiberglass body with an impact resistant acrylic lens and polyurethane gasket. Stainless steel mounting brackets provide drill-free mounting. Polycarbonate latches come standard or upgrade to stainless steel for added protection. Suitable for wall or ceiling mount.
  • Meets the following ratings: IP67 (dust tight and submersible in up to 1 meter of water for 30 min), high pressure hose down up to 1500 PSI, 5VA flame rating, wet location listed, NSF rated for food safety.
  • Perfect for: parking garages, food preparation, horse barns, car washes, pool areas, hallways and stairwells.

Lamp Features:

  • 120-277V operation
  • 4000K neutral white light
  • 18.5 watts and 2,500 lumens each
  • Type-B ballast bypass: integral driver eliminates need for external driver
  • Single-ended wiring method works on non-shunted sockets
  • Base: G13 medium bi-pin
  • Suitable for use in enclosed and open fixtures
  • Frosted lens eliminates pixelation
  • Start up instantly, no flicker or hum like conventional fluorescent tubes
  • Improved lamp durability with shatterproof coated glass
  • Environmentally friendly, no mercury used and are easy to recycle
  • Complies with NSF standards
  • DLC Standard
  • Operating temperature: -4º to 113º F
  • 50,000 hour LED lifetime
  • 5 year limited warranty

Click Here to return to GenerationLEDs homepage. We have lamp spec sheet

LED lamps are DLC Listed. Fixture is not DLC Listed.

Contact our lighting specialists for a quote or layout today!

Details
Details
Manufacturer: TechBrite DLC Product ID: PLUT2JPJ7ASS
Manufacturer Part Number: VHA46SSUBCXX00P0 Lumens: 15,000 Lumens
Lumens Per Watt: 135.14 Wattage: 111 Watts
Input Voltage: 120-277V Dimmable: 0-10V
Input Watts: 108 Watts Color Temperature: 4000K
Number of Lamps: 6 Rated Hours: 50,000 Hours
Special Features: Damp Location Rated, Wet Location Rated, NSF Rated, LED Ready With Lamps, IP67 Rated Made in USA: Yes
Lamps Included: Included Fixture Warranty: 1 Year
Lamp Warranty: 5 Years
