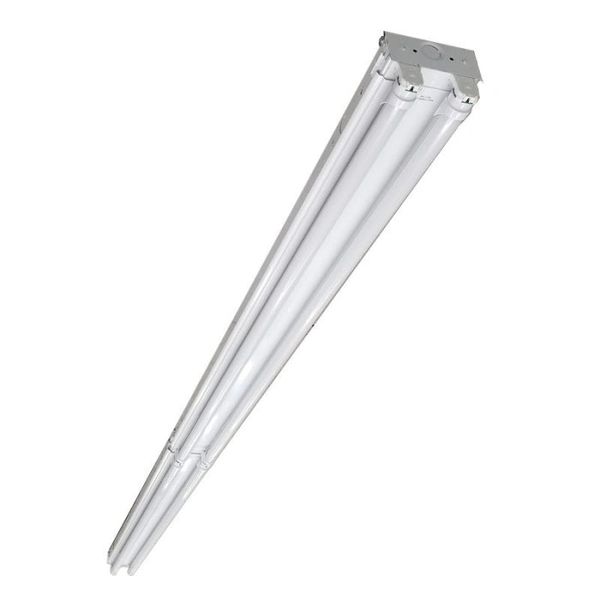

TechBrite 96" 4 Lamp LED T8 Conjoined Body Strip Fixture - 5000K - 10,692 Lumens - 120-277V

Gone are the days of troublesome shipping of 8 foot strip fixtures! With Techbrite's new 96" 4 lamp LED T8 strip fixture with tandem connector, you can field install the two 4 foot fixtures to make a sturdy 8 foot fixture using Techbrite's patented joiner. Utilize all the benefits of an 8 foot fixture with half the shipping cost and none of the issues! This fixture kit comes with two 4' Techbrite tube-ready strip fixtures, one connection bracket, and (4) Keystone 18W LED lamps that provide a total of 10,692 lumens of 5000K daylight white light.

• Patented connection bracket lets you turn two 4' strips into an 8' strip with ease
• Wired for single-ended lamp operation with unshunted sockets
• Continuous row mounting beyond 8' available with the SEPJ-TB conjoiner bracket - see 'frequently bought together' products
• 5 year limited warranty
• Made in the U.S.A

Lamp Features:

• 120-277V operation
• 5000K daylight white light
• 18.5 watts and 2,600 lumens each
• Type-B ballast bypass: integral driver eliminates need for external driver
• Single-ended wiring method works on non-shunted sockets
• Base: G13 medium bi-pin
• Suitable for use in enclosed and open fixtures
• Frosted lens eliminates pixelation
• Start up instantly, no flicker or hum like conventional fluorescent tubes
• Improved lamp durability with shatterproof coated glass
• Environmentally friendly, no mercury used and are easy to recycle
• Complies with NSF standards
• DLC Standard
• Operating temperature: -4º to 113º F
• 50,000 hour LED lifetime
• 5 year limited warranty

Click Here to return to GenerationLEDs homepage. We have lamp spec sheet

Watch the videos below to learn more about the benefits of a conjoined body tandem fixtures!

Contact our lighting specialists for a quote or layout today!
