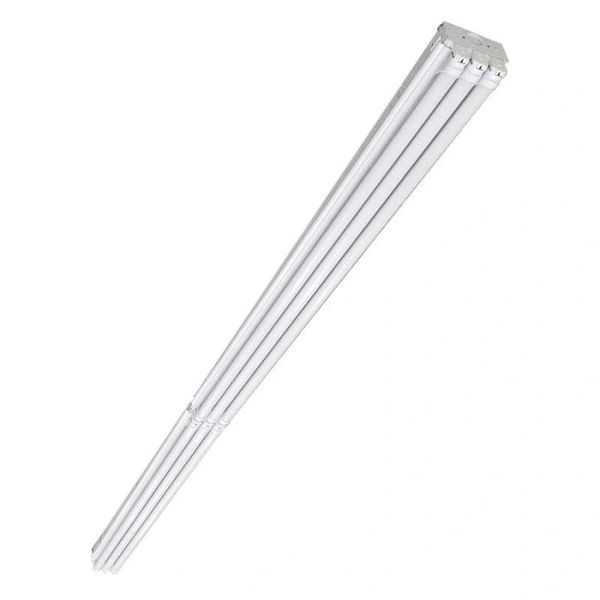

TechBrite 96" 6 Lamp LED T8 Conjoined Body Strip Fixture - 5000K - 15,600 Lumens - 120-277V

$140.00 $140.00

ITEM #:66084

Gone are the days of troublesome shipping of 8 foot strip fixtures! With Techbrite's new 96" 6 lamp LED T8 strip fixture with tandem connector, you can field install the two 4 foot fixtures to make a sturdy 8 foot fixture using Techbrite's patented joiner. Utilize all the benefits of an 8 foot fixture with half the shipping cost and none of the issues! This fixture kit comes with two 4' Techbrite tube-ready strip fixtures, one connection bracket, and (6) Keystone 18W LED lamps that provide a total of 15,600 lumens of 5000K daylight white light.

Fixture Features
  • Patented connection bracket lets you turn two 4' strips into an 8' strip with ease
  • Wired for single-ended lamp operation with unshunted sockets
  • Continuous row mounting beyond 8' available with the SEPJ-TB conjoiner bracket - see 'frequently bought together' products
  • 5 year limited warranty
  • Made in the U.S.A

Lamp Features:

  • 120-277V operation
  • 5000K daylight white light
  • 18.5 watts and 2,600 lumens each
  • Type-B ballast bypass: integral driver eliminates need for external driver
  • Single-ended wiring method works on non-shunted sockets
  • Base: G13 medium bi-pin
  • Suitable for use in enclosed and open fixtures
  • Frosted lens eliminates pixelation
  • Start up instantly, no flicker or hum like conventional fluorescent tubes
  • Improved lamp durability with shatterproof coated glass
  • Environmentally friendly, no mercury used and are easy to recycle
  • Complies with NSF standards
  • DLC Standard
  • Operating temperature: -4º to 113º F
  • 50,000 hour LED lifetime
  • 5 year limited warranty

Click Here to return to GenerationLEDs homepage. We have lamp spec sheet

Watch the videos below to learn more about the benefits of a conjoined body tandem fixtures!

Contact our lighting specialists for a quote or layout today!

Details
Details
Manufacturer: TechBrite DLC Product ID: PL3RTHHIE0ON
Manufacturer Part Number: T846SSUBCXX0TP0 Lumens: 15,600 Lumens
Lumens Per Watt: 140.54 Wattage: 111 Watts
Input Voltage: 120-277V Color Temperature: 5000K
Number of Lamps: 6 Rated Hours: 50,000 Hours
Min Operating Temp: -4 Degrees F CRI: 80+
Special Features: LED Ready With Lamps Made in USA: Yes
Lamps Included: Included Warranty: 5 Years
