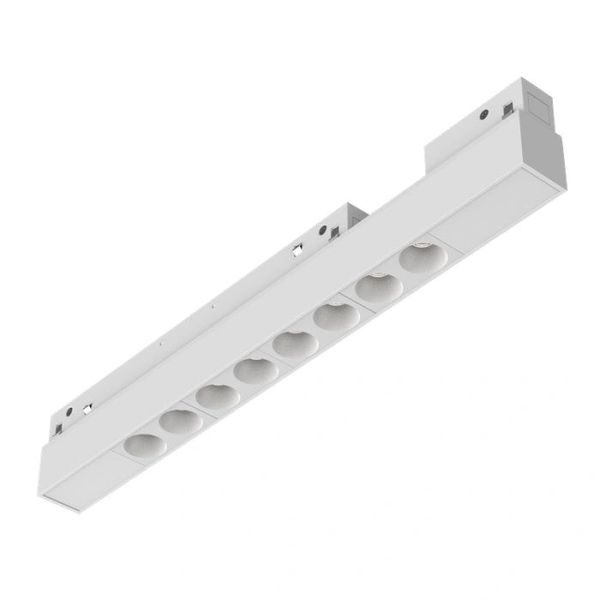

Verozza Moduline 9 Watt 8 Light LED Downlight Fixture - 0-10V Dimmable - 20º Beam Angle - 3500K - 750 Lumens - 120-277V - White
ITEM #:105803
The downlight fixtures for the Moduline system of architectural linear lighting are an excellent choice to provide smooth circular light distributions on horizontal and vertical surfaces to highlight and bring drama to lighting designs. These downlights magnetically attach into the Moduline track system and are secured in placed by the dual pushbutton locking system, and can be easily removed and re-installed as desired. The high color rendering (90+ CRI) produces rich and vibrant colors in the area of illumination. The Moduline system operates strictly on 0-10V dimming system and is not compatible with phase-dim dimming systems. Read below to learn more about the Moduline track lighting system.
The MOD-F-8L8-SP-935-WH-010UNV is a 9 watt, 8 light LED downlight fixture for the Moduline system in a white finish that provides 750 lumens of 2700K warm white light in a 20º beam angle and the following features:
- Requires remote mounted 120-277V to 48V DC driver (sold separately)
- 0-10V dimmable (not dimmable on phase-dim systems)
- Magnetically attaches into the Moduline track system and secured in place by dual pushbutton locking system
- High CRI of 90+ for true color rendering
- Aluminum housing
- Damp location rated
- Operating temperature: -4º to 104º F
- 50,000 hour rated
- 5 year warranty
The Moduline system of lighting by Verozza is a an extremely narrow, powerful and flexible 48V magnetic low voltage track system for all architectural spaces. A variety of linear and accent light fixtures are available to include in your design, and they magnetically snap into the 1" low voltage track to provide precise, low glare lighting and ultimate design flexibility. The system is perfect for hospitality, retail and dramatic spaces where room redesign occurs frequently. The Moduline system unlocks lighting designs not possible with previous track systems by providing the ability to surface mount, suspend mount or recess mount the track as well as freely attach, move and detach the fixtures in a magnetic and tool-less process. Fixture options include downlight and general ambient fixtures that can flood the application with soft, even light distribution as well as track heads, wall wash and cylinder fixtures that can be interspersed to highlight and accent artwork, signage or workspaces. The Moduline system is an excellent choice create the ideal design for your commercial, hospitality, restaurant, gallery, office or any other application.
Related items:
Details | |||
---|---|---|---|
Manufacturer: | Verozza | Manufacturer Part Number: | MOD-F-8L8-SP-935-WH-010UNV |
Lumens: | 750 Lumens | Lumens Per Watt: | 83.33 |
Wattage: | 9 Watts | Input Voltage: | 120-277V |
Dimmable: | 0-10V | Color Temperature: | 3500K |
Color: | White | Rated Hours: | 50,000 Hours |
Beam Angle: | 20 Degrees | CRI: | 90+ |
Special Features: | High CRI 90+, Damp Location Rated | Warranty: | 5 Years |
