SensorWorx Ceiling Occupancy Sensor - Dual Tech - Photocell - 360°/ Large Motion - 12-24V

SensorWorx ceiling mount occupancy sensors provides a range of control solutions for spaces with finished ceilings. Preferred by contractors for their simple yet flexible mounting methods, SensorWorx sensors reduce installation time and fuss. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance.

Dual tech (PIR + ultrasonic) detection: sensors in this model detect large movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor signals a connected power/relay pack to switch on the connected lighting. Additionally, this model comes with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion will be limited. Enhanced options for this sensor include a photocell that will override lights off if sufficient ambient light is present and an isolated relay for interfacing external systems (e.g., HVAC/BAS).

A single sensor can be used in small spaces like a private office, however, multiple low voltage sensors can be easily wired together to provide coverage for larger spaces like an open office.

Low-voltage 12-24VAC/VDC operation

Features Include:

• Digital passive infrared (PIR) detection
• Passive acoustic detection
• Ambient light override (photocell)

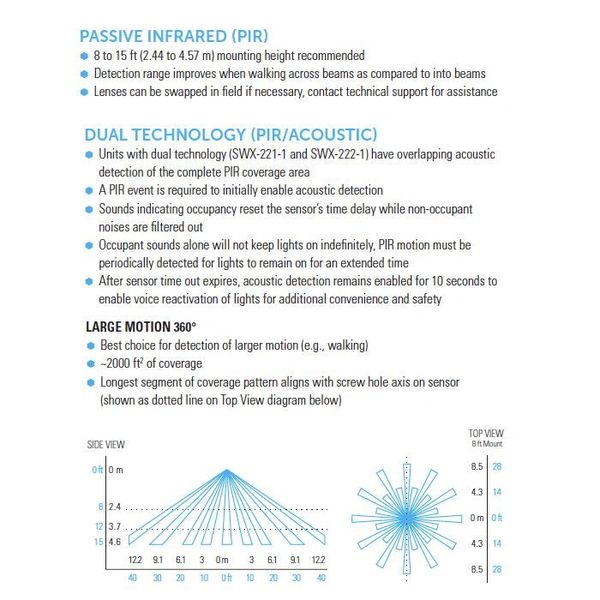

• 360° coverage pattern
• Compact size and matte finish
• Four contractor friendly mounting methods
• Mounting stem attachment with integrated hole saw
• Convenient test mode and adjustable time delays

SensorWorx is committed to 100% USA based manufacturing

Need help deciding what switches or sensors work best for your application? Refer to Sensorworx's handy application guides:
