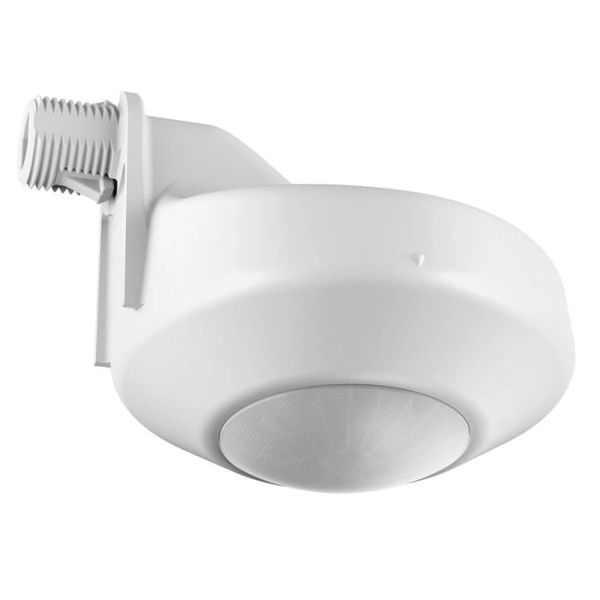

SensorWorx Fixture Mount Sensor - PIR - Universal 360° Lens - 0-10V Dimming - 120-277V

SensorWorx fixture mount occupancy sensor series is an excellent solution for high bay and industrial lighting control. With its universal lens that provides excellent range and density, this sensor removes the need to classify an application as low bay, high bay, or aisleway. Additionally, integrated tabs on its chase stem reduces installation time and fuss by firmly attaching to a fixture via a standard knockout. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance.

Passive infrared detection: sensors detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor’s internal relay switches power on to the connected lighting. An internal timer is set to keep lights on during brief periods of inactivity, and is reset every time occupancy is signaled.

0-10V dimmable fixtures can be controlled with a high/low/off sequence of operation by adding the High/Low option (HL). With this mode, the sensors will drop the lighting level to a low setting after the occupancy time delay expires. Then, after a second time delay, the sensor will shut the fixture off completely. Alternatively, leaving the sensor’s relay disconnected will cause the fixture to stay at the full dim setting (but never turn completely off) for the duration of the unoccupied period.

Features Include:

• Dimming output enables configurable high/low/off operational modes
• Universal lens works for high bay, low bay, and aisleway applications
• Greater detection range and density than leading highbay 360° and aisleway sensors
• Digital passive infrared (PIR) detection
• Snap-In chase stem makes installation quick
• Integrated bracket drops sensor below bottom of fixture
• Electronically timed switching designed for LED fixture control
• Convenient test mode and adjustable time delays

SensorWorx is committed to 100% USA based manufacturing
